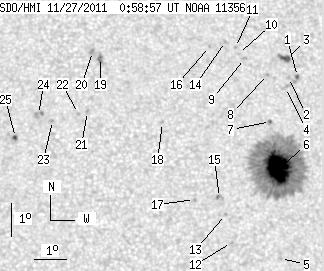

SDO HMI 2011-11-27 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.39 | 311.19 | 26.71 | 164.64 | 15.59 | 233.43 | 15.05 | 314.50 | 0.3527 | -964.2 | -433.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 3.34 | 0.74 | 1.80 | 18.10 | 234.66 | 16.28 | 317.16 | 0.3937 | -729.8 | -773.6 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 18.07 | 234.37 | 15.99 | 317.62 | 0.3902 | -773.0 | -597.9 | |
| 4.62 | 6.25 | 2.49 | 3.37 | 18.66 | 234.36 | 15.98 | 318.69 | 0.3968 | -883.2 | -718.2 | |
| 0.00 | 2.65 | 0.00 | 1.42 | 17.76 | 234.24 | 15.86 | 317.27 | 0.3853 | -654.0 | -447.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 12.55 | 233.69 | 15.31 | 306.90 | 0.3237 | -905.0 | -757.1 | |
| 43.12 | 264.82 | 22.82 | 140.12 | 15.28 | 233.81 | 15.43 | 313.07 | 0.3530 | -1472.9 | -448.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 16.72 | 233.67 | 15.29 | 316.29 | 0.3672 | -746.0 | -589.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 18.16 | 233.70 | 15.32 | 318.97 | 0.3841 | -757.0 | -584.6 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 18.66 | 233.00 | 14.62 | 321.13 | 0.3828 | -842.0 | -645.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.82 | 232.82 | 14.44 | 321.74 | 0.3829 | -711.0 | -484.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.01 | 232.74 | 14.36 | 322.21 | 0.3844 | -706.0 | -544.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 13.05 | 232.18 | 13.80 | 310.96 | 0.3092 | -875.0 | -767.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 13.89 | 232.04 | 13.67 | 313.31 | 0.3166 | -773.0 | -611.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.19 | 232.43 | 14.06 | 323.11 | 0.3837 | -642.0 | -516.3 | |
| 0.00 | 3.17 | 0.00 | 1.65 | 14.41 | 231.88 | 13.51 | 314.84 | 0.3205 | -814.0 | -735.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.04 | 231.90 | 13.53 | 323.88 | 0.3767 | -863.0 | -733.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 14.35 | 231.10 | 12.72 | 316.39 | 0.3107 | -856.0 | -734.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.71 | 230.23 | 11.86 | 323.26 | 0.3305 | -806.0 | -626.8 | |
| 0.00 | 3.51 | 0.00 | 1.85 | 18.72 | 228.40 | 10.02 | 330.99 | 0.3414 | -900.0 | -781.5 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 18.91 | 228.16 | 9.78 | 331.85 | 0.3422 | -945.0 | -756.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.05 | 227.90 | 9.52 | 329.59 | 0.3137 | 965.0 | 710.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.99 | 227.61 | 9.23 | 330.24 | 0.3105 | 901.0 | 697.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 16.78 | 226.79 | 8.41 | 332.12 | 0.3008 | 875.0 | 742.8 | |
| 0.00 | 4.53 | 0.00 | 2.35 | 16.97 | 226.36 | 7.98 | 333.62 | 0.3003 | 538.0 | 707.7 | |
| 1.28 | 1.88 | 0.66 | 0.97 | 16.27 | 225.61 | 7.24 | 334.71 | 0.2844 | 963.9 | 878.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
