SDO HMI 2011-11-27 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.65 | 261.24 | 22.64 | 135.51 | 17.77 | 223.24 | 5.41 | 342.27 | 0.2970 | -591.2 | -361.6 | |
|
previous
or next observation for the same group /

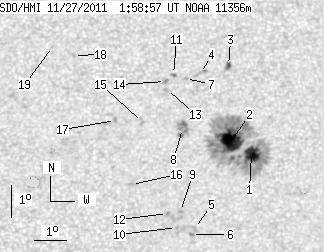

back to the solar disc SDO HMI 2011-11-27 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.78 | 214.78 | 7.14 | 111.38 | 17.43 | 224.02 | 6.20 | 339.51 | 0.2955 | -1269.8 | -430.4 | |
| 27.73 | -1.00 | 14.38 | -1.00 | 17.80 | 223.38 | 5.55 | 341.89 | 0.2978 | -1292.9 | 999999 | |
| 2.14 | 3.25 | 1.12 | 1.71 | 20.15 | 223.40 | 5.57 | 344.16 | 0.3352 | 910.2 | 702.9 | |
| 0.00 | 4.45 | 0.00 | 2.33 | 19.91 | 222.50 | 4.68 | 346.40 | 0.3275 | -576.0 | -490.8 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 15.13 | 222.20 | 4.37 | 342.75 | 0.2491 | 822.0 | 700.9 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 14.95 | 222.10 | 4.27 | 342.88 | 0.2457 | 1045.0 | 740.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 19.75 | 222.03 | 4.20 | 347.63 | 0.3232 | -808.0 | -656.5 | |
| 0.00 | 12.49 | 0.00 | 6.48 | 18.20 | 221.89 | 4.07 | 346.86 | 0.2976 | -899.0 | -830.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.65 | 221.78 | 3.95 | 344.89 | 0.2556 | 882.0 | 699.3 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 15.17 | 221.64 | 3.82 | 344.85 | 0.2470 | 950.0 | 801.5 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 19.88 | 221.65 | 3.82 | 348.79 | 0.3239 | -852.0 | -656.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.59 | 221.37 | 3.55 | 346.30 | 0.2529 | 944.0 | 734.8 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 19.41 | 221.42 | 3.59 | 349.16 | 0.3156 | -800.0 | -599.8 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 19.66 | 221.39 | 3.57 | 349.39 | 0.3196 | -806.0 | -558.3 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 18.39 | 220.65 | 2.82 | 350.90 | 0.2966 | 898.0 | 675.3 | |
| 0.00 | 2.74 | 0.00 | 1.41 | 16.48 | 220.28 | 2.45 | 351.02 | 0.2640 | 798.0 | 649.7 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.45 | 219.81 | 1.98 | 353.61 | 0.2957 | 812.0 | 665.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.47 | 218.51 | 0.68 | 358.05 | 0.3278 | 777.0 | 665.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 20.76 | 217.84 | 0.02 | 359.96 | 0.3323 | 610.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
