SDO HMI 2011-11-27 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.07 | 19.18 | 7.17 | 14.83 | 8.80 | 266.94 | 49.66 | 280.43 | 0.7650 | -394.3 | -167.7 | |
|
previous
or next observation for the same group /

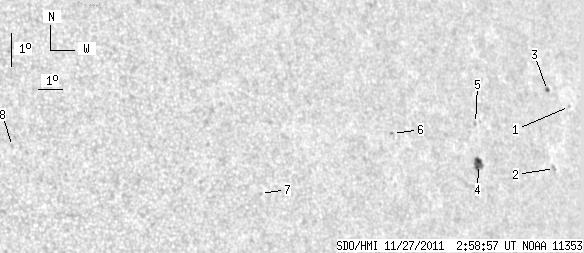

back to the solar disc SDO HMI 2011-11-27 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.90 | 9.98 | 272.41 | 55.13 | 281.15 | 0.8258 | -699.0 | -588.8 | |
| 0.00 | 2.05 | 0.00 | 1.74 | 8.15 | 271.21 | 53.94 | 279.03 | 0.8125 | 680.0 | 475.9 | |
| 1.45 | 1.80 | 1.24 | 1.53 | 10.48 | 271.39 | 54.11 | 281.87 | 0.8162 | -463.1 | -418.8 | |
| 7.62 | 8.99 | 5.93 | 7.00 | 8.34 | 267.53 | 50.25 | 279.64 | 0.7739 | -604.4 | -495.0 | |
| 0.00 | 1.54 | 0.00 | 1.20 | 9.56 | 267.62 | 50.34 | 281.20 | 0.7762 | -574.0 | -475.4 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 9.33 | 263.81 | 46.53 | 281.46 | 0.7330 | -599.0 | -477.9 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 7.64 | 258.08 | 40.80 | 279.99 | 0.6600 | -618.0 | -516.1 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 9.17 | 249.02 | 31.74 | 284.92 | 0.5396 | 775.0 | 575.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
