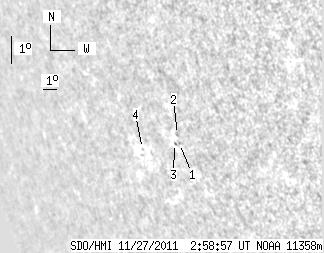

SDO HMI 2011-11-27 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.77 | 0.00 | 4.38 | -17.58 | 154.33 | -62.95 | 110.23 | 0.9065 | 136.8 | 171.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 1.07 | -17.62 | 155.00 | -62.28 | 110.39 | 0.9019 | 454.0 | 391.3 | |
| 0.00 | 1.20 | 0.00 | 1.36 | -17.34 | 155.04 | -62.24 | 110.09 | 0.9013 | 356.0 | 379.3 | |
| 0.00 | 0.86 | 0.00 | 0.98 | -17.63 | 154.66 | -62.62 | 110.34 | 0.9044 | 112.0 | 141.4 | |
| 0.00 | 0.77 | 0.00 | 0.97 | -17.84 | 152.24 | -65.04 | 110.13 | 0.9208 | -375.0 | -330.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
