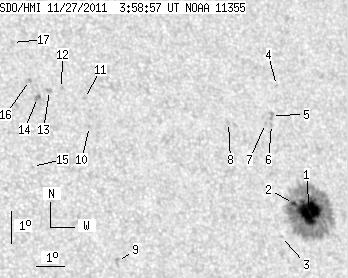

SDO HMI 2011-11-27 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.72 | 214.22 | 19.18 | 133.00 | 14.51 | 251.74 | 35.01 | 292.68 | 0.6040 | -558.3 | -325.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.84 | 189.73 | 18.01 | 118.47 | 14.20 | 252.41 | 35.68 | 291.76 | 0.6110 | -1148.8 | -404.4 | |
| 1.88 | -1.00 | 1.17 | -1.00 | 14.48 | 251.86 | 35.13 | 292.46 | 0.6051 | -1069.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 13.49 | 251.24 | 34.51 | 291.16 | 0.5930 | -744.0 | -593.3 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 18.10 | 251.96 | 35.23 | 297.98 | 0.6232 | -608.0 | -469.6 | |
| 0.00 | 3.08 | 0.00 | 1.93 | 17.18 | 251.57 | 34.84 | 296.81 | 0.6138 | -454.0 | -476.2 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 16.90 | 251.51 | 34.78 | 296.42 | 0.6117 | -686.0 | -611.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 16.93 | 251.29 | 34.56 | 296.59 | 0.6091 | -733.0 | -631.7 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 16.98 | 249.92 | 33.19 | 297.47 | 0.5923 | -706.0 | -548.4 | |
| 0.00 | 3.00 | 0.00 | 1.72 | 12.80 | 245.28 | 28.55 | 293.26 | 0.5093 | 835.0 | 682.8 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 16.92 | 244.90 | 28.17 | 300.88 | 0.5283 | 809.0 | 662.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.78 | 244.87 | 28.14 | 302.36 | 0.5337 | 682.0 | 559.4 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.10 | 244.11 | 27.38 | 303.53 | 0.5265 | 709.0 | 646.9 | |
| 0.00 | 2.91 | 0.00 | 1.69 | 18.04 | 243.68 | 26.95 | 303.81 | 0.5208 | 763.0 | 597.4 | |
| 0.00 | 3.00 | 0.00 | 1.73 | 17.83 | 243.23 | 26.50 | 303.86 | 0.5136 | 860.0 | 792.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 15.72 | 242.74 | 26.01 | 300.57 | 0.4923 | 763.0 | 631.6 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 18.36 | 243.04 | 26.31 | 304.93 | 0.5151 | 759.0 | 516.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 19.54 | 242.64 | 25.91 | 307.27 | 0.5196 | 610.0 | 508.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
