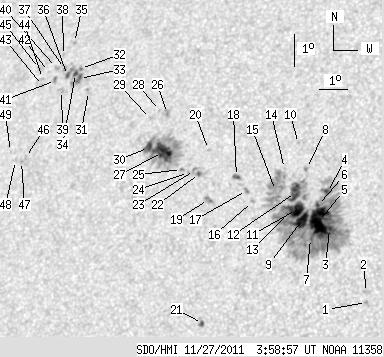

SDO HMI 2011-11-27 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.89 | 624.49 | 64.78 | 356.78 | 19.40 | 192.45 | -24.28 | 51.14 | 0.4984 | -183.2 | -202.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.03 | 16.05 | 196.50 | -20.23 | 52.61 | 0.4200 | -860.0 | -713.1 | |
| 0.00 | 3.34 | 0.00 | 1.82 | 16.35 | 196.47 | -20.26 | 52.05 | 0.4232 | -613.0 | -532.3 | |
| 1.37 | 405.48 | 0.76 | 227.45 | 18.31 | 195.01 | -21.72 | 50.26 | 0.4589 | -1212.1 | -447.0 | |
| 1.97 | -3.00 | 1.10 | -3.00 | 19.43 | 194.79 | -21.94 | 48.59 | 0.4719 | -869.3 | 999999 | |
| 31.58 | -3.00 | 17.65 | -3.00 | 18.52 | 194.61 | -22.12 | 50.36 | 0.4656 | -1319.8 | 999999 | |
| 1.28 | -3.00 | 0.72 | -3.00 | 19.02 | 194.51 | -22.23 | 49.63 | 0.4714 | -767.5 | 999999 | |
| 0.60 | -3.00 | 0.33 | -3.00 | 18.00 | 194.41 | -22.32 | 51.53 | 0.4633 | -632.4 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.26 | 20.17 | 193.96 | -22.77 | 48.34 | 0.4883 | -670.0 | -507.8 | |
| 11.47 | -3.00 | 6.44 | -3.00 | 18.55 | 194.03 | -22.70 | 51.00 | 0.4728 | -1106.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 20.95 | 193.56 | -23.17 | 47.55 | 0.5000 | -435.0 | -380.4 | |
| 14.04 | -3.00 | 7.91 | -3.00 | 18.89 | 193.81 | -22.92 | 50.66 | 0.4784 | -939.8 | 999999 | |
| 10.10 | -3.00 | 5.71 | -3.00 | 19.42 | 193.70 | -23.03 | 49.89 | 0.4844 | -830.4 | 999999 | |
| 0.26 | -3.00 | 0.14 | -3.00 | 18.76 | 193.52 | -23.21 | 51.20 | 0.4807 | -663.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 20.16 | 193.21 | -23.52 | 49.22 | 0.4968 | -471.0 | -369.6 | |
| 0.00 | 49.89 | 0.00 | 28.37 | 19.47 | 193.01 | -23.72 | 50.58 | 0.4931 | -267.0 | -145.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 19.12 | 192.27 | -24.46 | 51.95 | 0.4988 | -548.0 | -437.1 | |
| 0.00 | 2.57 | 0.00 | 1.47 | 19.46 | 192.01 | -24.72 | 51.66 | 0.5048 | -661.0 | -478.5 | |
| 2.31 | 3.25 | 1.33 | 1.87 | 19.89 | 191.59 | -25.14 | 51.38 | 0.5133 | 903.4 | 739.5 | |
| 0.00 | 4.71 | 0.00 | 2.72 | 19.17 | 190.74 | -25.99 | 53.42 | 0.5176 | -742.0 | -604.7 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 20.73 | 190.46 | -26.27 | 51.18 | 0.5334 | -555.0 | -430.0 | |
| 1.71 | 3.85 | 0.97 | 2.18 | 15.35 | 191.11 | -25.62 | 59.75 | 0.4847 | -769.9 | -565.6 | |
| 1.20 | 2.57 | 0.70 | 1.50 | 19.98 | 190.28 | -26.45 | 52.55 | 0.5294 | 966.6 | 880.0 | |
| 0.00 | 2.82 | 0.00 | 1.65 | 20.07 | 190.09 | -26.64 | 52.59 | 0.5324 | 560.0 | 706.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 20.00 | 189.89 | -26.84 | 52.88 | 0.5343 | 841.0 | 660.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 20.09 | 189.62 | -27.11 | 52.98 | 0.5381 | 859.0 | 785.4 | |
| 0.00 | 3.51 | 0.00 | 2.10 | 21.85 | 188.77 | -27.96 | 51.06 | 0.5617 | 658.0 | 479.6 | |
| 21.40 | 86.18 | 12.68 | 51.06 | 20.62 | 188.85 | -27.88 | 52.86 | 0.5513 | 1056.9 | 479.5 | |
| 0.00 | 0.34 | 0.00 | 0.21 | 21.94 | 188.46 | -28.27 | 51.20 | 0.5659 | 555.0 | 516.2 | |
| 0.00 | 1.88 | 0.00 | 1.13 | 21.68 | 188.19 | -28.54 | 51.82 | 0.5670 | 559.0 | 401.9 | |
| 5.65 | -27.00 | 3.37 | -27.00 | 20.77 | 188.31 | -28.42 | 53.10 | 0.5586 | 687.8 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.64 | 22.51 | 185.71 | -31.02 | 52.67 | 0.6010 | 840.0 | 688.2 | |
| 1.28 | 20.63 | 0.80 | 12.89 | 23.24 | 185.23 | -31.51 | 52.01 | 0.6115 | 674.6 | 672.3 | |
| 3.59 | -32.00 | 2.24 | -32.00 | 22.92 | 185.27 | -31.46 | 52.43 | 0.6088 | 917.2 | 999999 | |
| 1.37 | -32.00 | 0.86 | -32.00 | 23.07 | 185.08 | -31.65 | 52.36 | 0.6120 | 841.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 24.06 | 184.77 | -31.96 | 51.21 | 0.6223 | 753.0 | 598.6 | |
| 1.71 | -32.00 | 1.07 | -32.00 | 23.01 | 184.79 | -31.94 | 52.67 | 0.6146 | 728.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.08 | 23.23 | 184.62 | -32.11 | 52.49 | 0.6181 | 683.0 | 558.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 23.64 | 184.47 | -32.26 | 52.02 | 0.6226 | 490.0 | 445.6 | |
| 0.00 | 2.74 | 0.00 | 1.71 | 22.53 | 184.69 | -32.04 | 53.42 | 0.6125 | 675.0 | 638.8 | |
| 0.00 | 1.97 | 0.00 | 1.24 | 23.26 | 184.31 | -32.42 | 52.68 | 0.6217 | 537.0 | 479.8 | |
| 0.00 | 2.57 | 0.00 | 1.61 | 22.84 | 184.38 | -32.35 | 53.21 | 0.6180 | 564.0 | 572.4 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 23.13 | 184.04 | -32.69 | 53.07 | 0.6238 | 528.0 | 441.6 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 22.68 | 183.93 | -32.80 | 53.77 | 0.6219 | 618.0 | 499.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 22.90 | 183.87 | -32.86 | 53.50 | 0.6241 | 592.0 | 498.1 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 23.22 | 183.67 | -33.06 | 53.21 | 0.6284 | 570.0 | 453.9 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 20.40 | 183.87 | -32.86 | 57.10 | 0.6080 | 771.0 | 590.2 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 20.28 | 183.75 | -32.98 | 57.37 | 0.6086 | 718.0 | 659.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 20.30 | 183.51 | -33.22 | 57.49 | 0.6115 | 549.0 | 431.6 | |
| 0.00 | 0.34 | 0.00 | 0.21 | 20.58 | 183.26 | -33.47 | 57.25 | 0.6162 | 667.0 | 552.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
