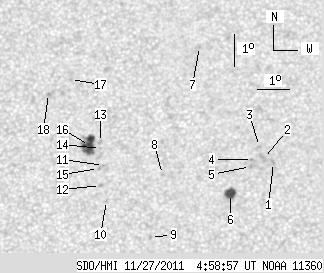

SDO HMI 2011-11-27 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.37 | 53.50 | 12.06 | 27.60 | 17.57 | 214.99 | -1.20 | 3.88 | 0.2830 | 511.2 | 515.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.88 | 17.47 | 218.65 | 2.47 | 351.56 | 0.2809 | 944.0 | 779.2 | |
| 0.00 | 4.54 | 0.00 | 2.34 | 17.59 | 218.34 | 2.16 | 352.67 | 0.2823 | 824.0 | 744.3 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.96 | 218.22 | 2.04 | 353.23 | 0.2882 | 794.0 | 672.0 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 17.56 | 218.00 | 1.81 | 353.81 | 0.2811 | 767.0 | 703.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.35 | 217.93 | 1.75 | 353.94 | 0.2773 | 993.0 | 845.1 | |
| 8.22 | 9.16 | 4.22 | 4.70 | 16.52 | 217.31 | 1.13 | 355.87 | 0.2625 | -971.6 | -749.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.08 | 216.36 | 0.17 | 359.52 | 0.3380 | 798.0 | 548.1 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 17.10 | 215.21 | -0.98 | 3.44 | 0.2721 | -819.0 | -542.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.17 | 214.85 | -1.33 | 5.39 | 0.2400 | -877.0 | -655.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.30 | 213.49 | -2.70 | 9.97 | 0.2621 | 794.0 | 620.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.38 | 213.38 | -2.81 | 9.64 | 0.2803 | 888.0 | 705.9 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 16.76 | 213.29 | -2.89 | 10.33 | 0.2703 | 967.0 | 676.4 | |
| 0.00 | 2.23 | 0.00 | 1.15 | 18.09 | 213.27 | -2.91 | 9.55 | 0.2923 | 856.0 | 664.7 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 17.90 | 213.28 | -2.91 | 9.65 | 0.2892 | 863.0 | 676.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.28 | 213.22 | -2.96 | 10.22 | 0.2792 | 880.0 | 612.3 | |
| 15.15 | 19.94 | 7.84 | 10.32 | 17.99 | 212.93 | -3.25 | 10.70 | 0.2918 | 1051.4 | 607.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 20.04 | 212.29 | -3.89 | 11.29 | 0.3272 | 805.0 | 671.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.60 | 211.61 | -4.57 | 13.53 | 0.3226 | 725.0 | 604.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
