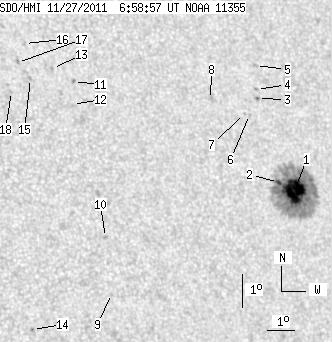

SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 201.12 | 20.03 | 127.56 | 14.49 | 251.83 | 36.74 | 291.82 | 0.6260 | -498.5 | -337.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.18 | 181.00 | 18.62 | 115.41 | 14.25 | 252.41 | 37.32 | 291.14 | 0.6323 | -1115.1 | -403.3 | |
| 2.23 | -1.00 | 1.41 | -1.00 | 14.50 | 251.85 | 36.75 | 291.77 | 0.6261 | -996.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 17.07 | 251.58 | 36.49 | 295.80 | 0.6337 | -709.0 | -608.5 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 17.35 | 251.61 | 36.52 | 296.20 | 0.6353 | -552.0 | -442.6 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 18.09 | 251.75 | 36.65 | 297.21 | 0.6404 | -578.0 | -464.1 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 16.59 | 251.17 | 36.08 | 295.28 | 0.6264 | -622.0 | -506.5 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 16.62 | 250.98 | 35.89 | 295.42 | 0.6243 | -494.0 | -485.7 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 17.07 | 249.79 | 34.70 | 296.75 | 0.6116 | -195.0 | -329.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 11.23 | 245.26 | 30.17 | 289.44 | 0.5248 | 521.0 | 493.9 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 12.92 | 245.26 | 30.17 | 292.50 | 0.5323 | 848.0 | 682.6 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 17.68 | 244.88 | 29.79 | 300.92 | 0.5539 | 722.0 | 567.6 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 16.98 | 244.72 | 29.62 | 299.88 | 0.5474 | 673.0 | 632.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 18.09 | 244.20 | 29.11 | 302.11 | 0.5481 | 741.0 | 542.3 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 10.18 | 242.43 | 27.34 | 288.97 | 0.4800 | 846.0 | 651.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 17.79 | 243.37 | 28.28 | 302.29 | 0.5357 | 812.0 | 699.1 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 18.88 | 243.35 | 28.26 | 304.08 | 0.5430 | 638.0 | 416.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 18.29 | 243.00 | 27.90 | 303.42 | 0.5345 | 792.0 | 649.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 17.40 | 242.63 | 27.54 | 302.24 | 0.5238 | 763.0 | 629.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
