SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.20 | 293.27 | 26.56 | 157.97 | 15.70 | 233.38 | 18.29 | 309.47 | 0.3935 | -935.8 | -414.3 | |
|
previous
or next observation for the same group /

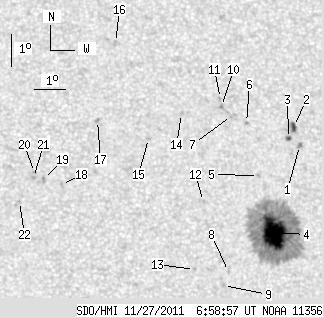

back to the solar disc SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.41 | 18.03 | 234.84 | 19.75 | 311.82 | 0.4330 | -961.0 | -751.9 | |
| 3.08 | 6.08 | 1.70 | 3.34 | 18.61 | 234.72 | 19.62 | 313.05 | 0.4374 | -801.6 | -639.6 | |
| 2.05 | 2.48 | 1.13 | 1.36 | 18.24 | 234.51 | 19.41 | 312.68 | 0.4313 | -933.0 | -791.8 | |
| 44.07 | 253.06 | 23.73 | 136.29 | 15.36 | 233.71 | 18.62 | 308.23 | 0.3937 | -1475.3 | -435.7 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 17.11 | 233.40 | 18.30 | 312.18 | 0.4068 | -893.0 | -583.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.75 | 233.18 | 18.09 | 315.52 | 0.4214 | 721.0 | 564.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.97 | 232.71 | 17.62 | 316.63 | 0.4186 | -821.0 | -700.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 14.19 | 232.17 | 17.07 | 308.00 | 0.3628 | -680.0 | -489.3 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 13.76 | 231.98 | 16.88 | 307.34 | 0.3564 | -891.0 | -663.1 | |
| 0.00 | 2.65 | 0.00 | 1.45 | 19.25 | 232.41 | 17.32 | 317.58 | 0.4185 | -933.0 | -704.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 19.50 | 232.41 | 17.32 | 318.02 | 0.4212 | -627.0 | -532.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 16.33 | 231.54 | 16.45 | 313.58 | 0.3768 | -721.0 | -648.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 14.26 | 231.09 | 16.00 | 309.92 | 0.3498 | -755.0 | -628.2 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 19.04 | 231.08 | 15.99 | 319.42 | 0.4020 | -657.0 | -540.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 18.27 | 229.94 | 14.85 | 320.10 | 0.3811 | -827.0 | -611.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 21.27 | 229.15 | 14.06 | 326.40 | 0.4108 | -684.0 | -543.0 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 18.84 | 228.35 | 13.26 | 324.15 | 0.3722 | -942.0 | -737.0 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 16.87 | 227.06 | 11.97 | 323.41 | 0.3344 | 903.0 | 691.1 | |
| 0.00 | 2.74 | 0.00 | 1.44 | 17.03 | 226.50 | 11.41 | 324.98 | 0.3311 | 912.0 | 713.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.25 | 226.23 | 11.14 | 326.00 | 0.3314 | 710.0 | 597.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.09 | 226.19 | 11.10 | 325.82 | 0.3290 | 1044.0 | 810.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 16.36 | 225.71 | 10.61 | 325.64 | 0.3146 | 891.0 | 689.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
