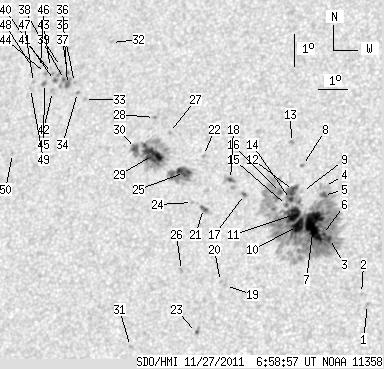

SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.73 | 560.86 | 66.16 | 316.61 | 19.42 | 192.47 | -22.62 | 49.20 | 0.4794 | -187.4 | -202.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.20 | 16.13 | 196.65 | -18.44 | 49.95 | 0.3987 | -910.0 | -664.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 16.46 | 196.42 | -18.67 | 49.61 | 0.4048 | -804.0 | -668.8 | |
| 1.88 | 382.63 | 1.04 | 212.26 | 18.15 | 195.19 | -19.90 | 48.17 | 0.4360 | -1222.0 | -463.1 | |
| 0.00 | 5.48 | 0.00 | 3.05 | 19.76 | 194.82 | -20.28 | 45.86 | 0.4563 | -50.0 | -71.5 | |
| 2.74 | -3.00 | 1.52 | -3.00 | 19.48 | 194.82 | -20.27 | 46.33 | 0.4535 | -799.2 | 999999 | |
| 1.97 | -3.00 | 1.08 | -3.00 | 18.27 | 194.94 | -20.15 | 48.28 | 0.4401 | -1216.1 | 999999 | |
| 29.01 | -3.00 | 16.05 | -3.00 | 18.58 | 194.60 | -20.49 | 48.18 | 0.4471 | -1316.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 20.41 | 193.99 | -21.11 | 45.88 | 0.4721 | -774.0 | -614.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 19.60 | 194.10 | -20.99 | 47.08 | 0.4628 | -490.0 | -314.7 | |
| 10.78 | -3.00 | 5.98 | -3.00 | 18.51 | 194.08 | -21.02 | 48.98 | 0.4526 | -1143.2 | 999999 | |
| 13.26 | -3.00 | 7.38 | -3.00 | 18.88 | 193.90 | -21.20 | 48.57 | 0.4583 | -974.8 | 999999 | |
| 5.56 | -3.00 | 3.11 | -3.00 | 19.63 | 193.79 | -21.30 | 47.42 | 0.4666 | -754.3 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 21.13 | 193.51 | -21.59 | 45.34 | 0.4845 | -855.0 | -663.8 | |
| 2.05 | -3.00 | 1.15 | -3.00 | 19.35 | 193.73 | -21.36 | 47.97 | 0.4646 | -912.9 | 999999 | |
| 1.45 | -3.00 | 0.81 | -3.00 | 19.16 | 193.62 | -21.47 | 48.43 | 0.4641 | -715.1 | 999999 | |
| 1.97 | -3.00 | 1.10 | -3.00 | 19.56 | 193.36 | -21.73 | 48.07 | 0.4709 | -635.6 | 999999 | |
| 1.37 | 1.54 | 0.77 | 0.87 | 19.49 | 192.15 | -22.94 | 49.64 | 0.4843 | -604.1 | -495.0 | |
| 1.63 | 5.39 | 0.93 | 3.07 | 19.95 | 191.60 | -23.49 | 49.49 | 0.4948 | 827.2 | 454.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 16.67 | 191.90 | -23.19 | 54.88 | 0.4631 | -694.0 | -547.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.79 | 191.72 | -23.38 | 54.85 | 0.4665 | -712.0 | -531.2 | |
| 2.74 | 4.19 | 1.56 | 2.39 | 19.04 | 190.82 | -24.28 | 51.86 | 0.4961 | -763.9 | -712.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 20.69 | 190.54 | -24.55 | 49.45 | 0.5136 | -648.0 | -493.0 | |
| 1.03 | 2.65 | 0.57 | 1.48 | 15.23 | 191.11 | -23.98 | 58.42 | 0.4623 | -729.8 | -631.1 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 19.22 | 190.41 | -24.68 | 51.99 | 0.5025 | -473.0 | -340.6 | |
| 9.33 | 29.35 | 5.39 | 16.95 | 20.15 | 189.98 | -25.12 | 50.91 | 0.5155 | 1031.6 | 648.4 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 17.12 | 190.35 | -24.74 | 55.68 | 0.4863 | -723.0 | -658.2 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 21.40 | 189.22 | -25.87 | 49.71 | 0.5347 | 769.0 | 543.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 21.87 | 188.60 | -26.49 | 49.61 | 0.5457 | 887.0 | 719.6 | |
| 19.43 | 75.48 | 11.36 | 44.17 | 20.68 | 188.76 | -26.33 | 51.30 | 0.5339 | 1059.8 | 517.9 | |
| 4.36 | -29.00 | 2.57 | -29.00 | 20.89 | 188.12 | -26.98 | 51.58 | 0.5431 | 645.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 14.78 | 188.93 | -26.16 | 61.25 | 0.4883 | -755.0 | -569.8 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 24.24 | 186.51 | -28.59 | 48.14 | 0.5881 | 623.0 | 546.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 22.41 | 185.95 | -29.14 | 51.24 | 0.5796 | 728.0 | 584.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 22.63 | 185.64 | -29.45 | 51.18 | 0.5847 | 832.0 | 697.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 22.95 | 185.45 | -29.64 | 50.88 | 0.5892 | 845.0 | 736.8 | |
| 3.17 | 8.90 | 1.94 | 5.46 | 22.88 | 185.21 | -29.88 | 51.18 | 0.5913 | 944.5 | 765.8 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 23.23 | 185.13 | -29.97 | 50.76 | 0.5949 | 696.0 | 652.8 | |
| 0.77 | -36.00 | 0.47 | -36.00 | 23.04 | 185.06 | -30.03 | 51.08 | 0.5942 | 931.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 23.45 | 184.81 | -30.28 | 50.71 | 0.6000 | 578.0 | 476.9 | |
| 1.20 | 4.54 | 0.74 | 2.80 | 23.01 | 184.70 | -30.40 | 51.43 | 0.5979 | 749.6 | 675.1 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 23.23 | 184.57 | -30.53 | 51.23 | 0.6010 | 706.0 | 555.0 | |
| 0.00 | 2.40 | 0.00 | 1.47 | 22.65 | 184.71 | -30.38 | 51.93 | 0.5952 | 680.0 | 658.3 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 23.42 | 184.44 | -30.65 | 51.06 | 0.6037 | 498.0 | 426.9 | |
| 0.00 | 1.28 | 0.00 | 0.80 | 23.22 | 184.31 | -30.79 | 51.44 | 0.6038 | 627.0 | 534.1 | |
| 1.03 | 2.14 | 0.64 | 1.32 | 22.91 | 184.35 | -30.74 | 51.86 | 0.6010 | 711.0 | 712.7 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 23.41 | 184.07 | -31.03 | 51.36 | 0.6078 | 408.0 | 274.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 22.93 | 183.93 | -31.16 | 52.15 | 0.6058 | 586.0 | 509.4 | |
| 0.00 | 1.28 | 0.00 | 0.80 | 23.41 | 183.77 | -31.33 | 51.61 | 0.6110 | 569.0 | 441.7 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 22.74 | 183.87 | -31.23 | 52.48 | 0.6051 | 560.0 | 454.1 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 20.68 | 183.69 | -31.40 | 55.61 | 0.5929 | 744.0 | 534.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
