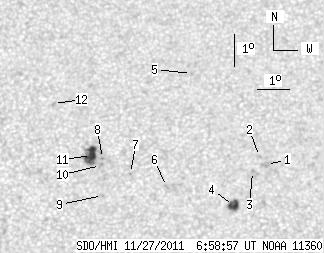

SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.56 | 50.42 | 11.12 | 26.05 | 17.68 | 214.85 | -0.24 | 0.62 | 0.2843 | 451.4 | 527.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.71 | 0.00 | 2.43 | 17.73 | 218.40 | 3.31 | 348.95 | 0.2879 | 796.0 | 726.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.98 | 218.19 | 3.09 | 349.81 | 0.2913 | 811.0 | 655.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.51 | 217.96 | 2.87 | 350.25 | 0.2830 | 866.0 | 693.8 | |
| 8.64 | 10.36 | 4.44 | 5.32 | 16.47 | 217.36 | 2.26 | 351.71 | 0.2640 | -958.3 | -724.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.56 | 216.08 | 0.99 | 357.17 | 0.3301 | 836.0 | 660.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.05 | 215.29 | 0.20 | 359.30 | 0.2711 | -780.0 | -671.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.45 | 214.18 | -0.92 | 3.16 | 0.2783 | 707.0 | 460.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.92 | 213.30 | -1.79 | 5.97 | 0.2872 | 912.0 | 696.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 16.78 | 213.31 | -1.78 | 6.40 | 0.2681 | 915.0 | 690.4 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 17.70 | 213.24 | -1.85 | 6.25 | 0.2837 | 919.0 | 797.5 | |
| 12.92 | 22.42 | 6.68 | 11.60 | 18.01 | 212.96 | -2.13 | 7.06 | 0.2894 | 1060.5 | 678.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 19.62 | 211.74 | -3.35 | 9.98 | 0.3190 | 722.0 | 660.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
