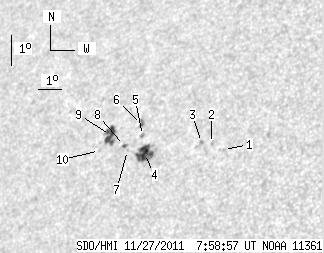

SDO HMI 2011-11-27 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.15 | 47.83 | 20.32 | 34.37 | 19.32 | 170.79 | -43.75 | 64.28 | 0.7266 | -80.7 | -210.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.46 | 19.22 | 174.51 | -40.03 | 62.85 | 0.6850 | -777.0 | -655.9 | |
| 0.00 | 1.28 | 0.00 | 0.88 | 19.39 | 173.96 | -40.58 | 62.86 | 0.6919 | -614.0 | -461.9 | |
| 0.00 | 1.37 | 0.00 | 0.94 | 19.42 | 173.54 | -41.01 | 63.01 | 0.6968 | -694.0 | -523.6 | |
| 15.40 | 21.99 | 10.97 | 15.65 | 19.04 | 171.24 | -43.30 | 64.48 | 0.7208 | -668.6 | -537.2 | |
| 0.00 | 2.05 | 0.00 | 1.47 | 19.60 | 170.97 | -43.58 | 63.85 | 0.7258 | -586.0 | -397.0 | |
| 0.77 | 3.08 | 0.56 | 2.22 | 19.94 | 170.81 | -43.74 | 63.47 | 0.7288 | -440.1 | -461.0 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 19.12 | 170.48 | -44.07 | 64.67 | 0.7294 | 702.0 | 582.0 | |
| 0.51 | 1.63 | 0.37 | 1.18 | 19.28 | 170.29 | -44.25 | 64.54 | 0.7319 | 766.5 | 617.9 | |
| 11.47 | 14.21 | 8.42 | 10.44 | 19.58 | 169.57 | -44.98 | 64.42 | 0.7407 | 696.2 | 534.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 19.10 | 169.25 | -45.30 | 65.15 | 0.7425 | 434.0 | 386.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
