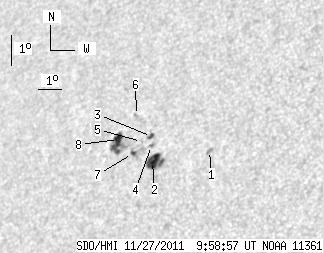

SDO HMI 2011-11-27 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.79 | 60.75 | 16.82 | 43.01 | 19.38 | 170.54 | -42.91 | 63.86 | 0.7177 | -205.0 | 146.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 2.09 | 19.37 | 173.50 | -39.95 | 62.60 | 0.6848 | -737.0 | -567.9 | |
| 13.01 | 18.82 | 9.10 | 13.15 | 18.99 | 171.24 | -42.21 | 64.11 | 0.7086 | -656.7 | -729.8 | |
| 2.22 | 3.25 | 1.57 | 2.30 | 19.77 | 170.95 | -42.51 | 63.19 | 0.7148 | -502.1 | -410.8 | |
| 0.00 | 1.88 | 0.00 | 1.32 | 19.49 | 171.04 | -42.42 | 63.52 | 0.7127 | -567.0 | -410.4 | |
| 0.00 | 1.20 | 0.00 | 0.85 | 19.60 | 170.57 | -42.88 | 63.56 | 0.7183 | 85.0 | 104.5 | |
| 0.00 | 1.63 | 0.00 | 1.17 | 20.41 | 170.08 | -43.38 | 62.70 | 0.7267 | -435.0 | -341.5 | |
| 1.97 | 10.01 | 1.40 | 7.09 | 19.22 | 170.31 | -43.15 | 64.17 | 0.7198 | 769.2 | 481.4 | |
| 6.59 | 20.88 | 4.75 | 15.04 | 19.65 | 169.56 | -43.90 | 63.90 | 0.7295 | 647.0 | 622.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
