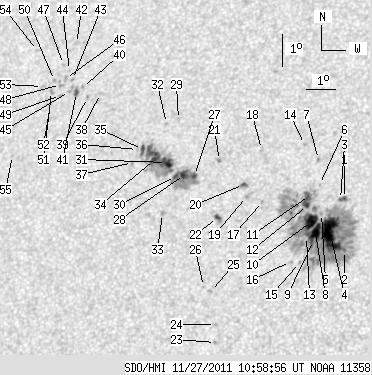

SDO HMI 2011-11-27 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.48 | 521.83 | 49.76 | 290.37 | 19.32 | 192.50 | -20.41 | 46.53 | 0.4532 | -256.7 | -187.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 4.36 | 0.33 | 2.39 | 19.60 | 194.99 | -17.92 | 42.73 | 0.4290 | -892.6 | -806.8 | |
| 0.68 | 354.35 | 0.37 | 193.93 | 17.99 | 195.17 | -17.74 | 45.29 | 0.4096 | -1172.4 | -482.7 | |
| 0.34 | -1.00 | 0.19 | -1.00 | 19.57 | 194.86 | -18.05 | 42.98 | 0.4300 | -912.8 | 999999 | |
| 33.11 | -2.00 | 18.06 | -2.00 | 18.48 | 194.66 | -18.25 | 45.18 | 0.4206 | -1310.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.13 | 194.29 | -18.62 | 44.59 | 0.4316 | -626.0 | -487.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 20.03 | 194.11 | -18.80 | 43.32 | 0.4431 | -541.0 | -415.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 20.81 | 193.98 | -18.93 | 42.25 | 0.4530 | -557.0 | -445.8 | |
| 9.33 | -2.00 | 5.10 | -2.00 | 18.54 | 194.16 | -18.75 | 45.82 | 0.4269 | -1122.0 | 999999 | |
| 0.68 | -2.00 | 0.37 | -2.00 | 18.29 | 194.12 | -18.79 | 46.32 | 0.4247 | -826.8 | 999999 | |
| 10.69 | -2.00 | 5.87 | -2.00 | 18.88 | 193.99 | -18.92 | 45.47 | 0.4323 | -963.0 | 999999 | |
| 0.94 | -2.00 | 0.52 | -2.00 | 19.68 | 193.82 | -19.09 | 44.32 | 0.4426 | -705.3 | 999999 | |
| 1.97 | -2.00 | 1.08 | -2.00 | 19.37 | 193.79 | -19.12 | 44.89 | 0.4397 | -895.2 | 999999 | |
| 0.34 | -2.00 | 0.19 | -2.00 | 18.41 | 193.88 | -19.04 | 46.45 | 0.4288 | -800.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 21.28 | 193.45 | -19.47 | 42.26 | 0.4636 | -772.0 | -612.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 17.61 | 193.74 | -19.18 | 48.12 | 0.4223 | -744.0 | -557.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 17.63 | 193.44 | -19.47 | 48.48 | 0.4261 | -783.0 | -542.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 19.48 | 192.28 | -20.63 | 46.77 | 0.4578 | -176.0 | -284.6 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 21.11 | 192.02 | -20.90 | 44.46 | 0.4771 | -620.0 | -425.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 19.64 | 191.72 | -21.19 | 47.24 | 0.4657 | -674.0 | -577.4 | |
| 1.71 | 3.08 | 0.96 | 1.73 | 20.01 | 191.57 | -21.35 | 46.81 | 0.4711 | 654.6 | 526.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 20.75 | 190.64 | -22.27 | 46.75 | 0.4886 | -727.0 | -587.7 | |
| 2.57 | 3.76 | 1.44 | 2.11 | 18.98 | 190.83 | -22.08 | 49.46 | 0.4697 | -802.1 | -693.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 15.13 | 191.24 | -21.67 | 56.11 | 0.4312 | -820.0 | -662.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 15.68 | 191.18 | -21.73 | 55.09 | 0.4365 | -847.0 | -648.2 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 16.69 | 190.90 | -22.01 | 53.49 | 0.4486 | -866.0 | -639.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 16.84 | 190.64 | -22.27 | 53.50 | 0.4531 | -673.0 | -553.8 | |
| 2.48 | 39.95 | 1.41 | 22.76 | 20.28 | 189.86 | -23.05 | 48.44 | 0.4930 | 1000.9 | 610.5 | |
| 5.22 | -27.00 | 2.97 | -27.00 | 20.30 | 189.51 | -23.40 | 48.79 | 0.4972 | 1093.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 22.03 | 189.01 | -23.90 | 46.65 | 0.5187 | 305.0 | 400.3 | |
| 2.31 | -27.00 | 1.32 | -27.00 | 20.24 | 189.21 | -23.70 | 49.23 | 0.5000 | 945.1 | 999999 | |
| 6.33 | 61.08 | 3.64 | 35.19 | 20.67 | 188.83 | -24.09 | 48.95 | 0.5083 | 1038.6 | 664.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 21.90 | 188.61 | -24.30 | 47.28 | 0.5218 | 864.0 | 697.1 | |
| 0.00 | 2.31 | 0.00 | 1.31 | 19.08 | 188.95 | -23.97 | 51.43 | 0.4930 | 784.0 | 681.6 | |
| 3.94 | -31.00 | 2.27 | -31.00 | 20.77 | 188.39 | -24.52 | 49.28 | 0.5140 | 977.9 | 999999 | |
| 3.42 | -31.00 | 1.98 | -31.00 | 21.08 | 187.92 | -24.99 | 49.29 | 0.5221 | 664.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 21.07 | 187.74 | -25.17 | 49.48 | 0.5241 | 565.0 | 498.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 20.66 | 187.64 | -25.27 | 50.23 | 0.5217 | 657.0 | 528.3 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 22.83 | 186.08 | -26.83 | 48.49 | 0.5576 | 616.0 | 463.7 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 22.70 | 185.64 | -27.27 | 49.11 | 0.5613 | 762.0 | 659.8 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 23.01 | 185.39 | -27.52 | 48.88 | 0.5667 | 780.0 | 686.6 | |
| 2.82 | 4.88 | 1.69 | 2.93 | 22.85 | 185.21 | -27.70 | 49.28 | 0.5673 | 865.5 | 714.1 | |
| 0.00 | 2.14 | 0.00 | 1.30 | 24.42 | 184.85 | -28.06 | 47.40 | 0.5842 | 541.0 | 390.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 23.26 | 184.97 | -27.94 | 48.91 | 0.5733 | 723.0 | 577.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 23.55 | 184.80 | -28.11 | 48.66 | 0.5776 | 423.0 | 343.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 22.88 | 184.95 | -27.96 | 49.48 | 0.5704 | 816.0 | 697.4 | |
| 0.00 | 2.40 | 0.00 | 1.45 | 23.29 | 184.71 | -28.20 | 49.11 | 0.5764 | 641.0 | 616.6 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 23.74 | 184.53 | -28.38 | 48.63 | 0.5820 | 529.0 | 423.8 | |
| 0.00 | 3.25 | 0.00 | 1.97 | 23.10 | 184.57 | -28.34 | 49.51 | 0.5763 | 821.0 | 721.5 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 22.75 | 184.65 | -28.26 | 49.94 | 0.5727 | 773.0 | 659.4 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 23.23 | 184.32 | -28.59 | 49.55 | 0.5801 | 673.0 | 544.7 | |
| 0.00 | 2.14 | 0.00 | 1.29 | 22.88 | 184.29 | -28.62 | 50.08 | 0.5776 | 899.0 | 732.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 22.46 | 184.35 | -28.56 | 50.63 | 0.5737 | 630.0 | 484.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 23.03 | 183.93 | -28.98 | 50.18 | 0.5828 | 511.0 | 421.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 24.18 | 183.46 | -29.45 | 48.97 | 0.5969 | 437.0 | 343.8 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 20.84 | 183.33 | -29.58 | 53.93 | 0.5731 | 565.0 | 359.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
