SDO HMI 2011-11-27 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.66 | 539.79 | 57.43 | 298.50 | 19.47 | 192.34 | -19.47 | 44.95 | 0.4443 | -109.3 | -207.0 | |
|
previous
or next observation for the same group /

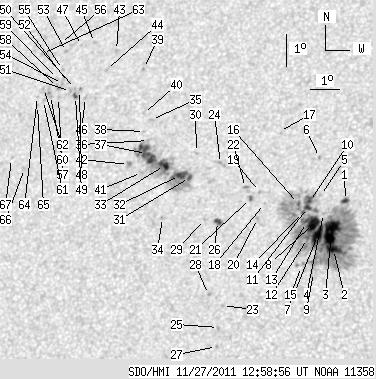

back to the solar disc SDO HMI 2011-11-27 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 360.34 | 1.35 | 195.96 | 19.63 | 194.98 | -16.84 | 40.96 | 0.4179 | -826.8 | -498.2 | |
| 7.95 | -1.00 | 4.30 | -1.00 | 18.11 | 194.75 | -17.07 | 44.00 | 0.4034 | -1357.1 | 999999 | |
| 22.84 | -1.00 | 12.40 | -1.00 | 18.66 | 194.63 | -17.19 | 43.20 | 0.4108 | -1315.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 19.22 | 194.30 | -17.51 | 42.74 | 0.4205 | -474.0 | -334.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 19.78 | 194.14 | -17.67 | 42.04 | 0.4284 | -457.0 | -369.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 20.97 | 193.97 | -17.85 | 40.39 | 0.4436 | -768.0 | -615.4 | |
| 11.29 | -1.00 | 6.14 | -1.00 | 18.54 | 194.18 | -17.64 | 44.12 | 0.4144 | -1147.3 | 999999 | |
| 11.12 | -1.00 | 6.06 | -1.00 | 18.91 | 194.01 | -17.81 | 43.74 | 0.4203 | -997.0 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.40 | 17.39 | 194.17 | -17.65 | 46.24 | 0.4023 | -190.0 | -472.1 | |
| 1.54 | -1.00 | 0.84 | -1.00 | 19.59 | 193.80 | -18.02 | 42.89 | 0.4300 | -850.7 | 999999 | |
| 2.39 | -1.00 | 1.31 | -1.00 | 19.40 | 193.76 | -18.06 | 43.27 | 0.4284 | -879.6 | 999999 | |
| 0.68 | -1.00 | 0.37 | -1.00 | 18.44 | 193.86 | -17.95 | 44.78 | 0.4169 | -583.8 | 999999 | |
| 0.34 | -1.00 | 0.19 | -1.00 | 18.94 | 193.78 | -18.04 | 44.04 | 0.4232 | -762.5 | 999999 | |
| 1.37 | -1.00 | 0.75 | -1.00 | 19.25 | 193.61 | -18.21 | 43.76 | 0.4283 | -731.1 | 999999 | |
| 0.00 | 4.88 | 0.00 | 2.64 | 17.57 | 193.76 | -18.06 | 46.53 | 0.4090 | -233.0 | -481.6 | |
| 1.45 | -1.00 | 0.80 | -1.00 | 19.52 | 193.44 | -18.37 | 43.53 | 0.4331 | -627.4 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 21.78 | 192.52 | -19.30 | 41.25 | 0.4674 | -325.0 | -484.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.52 | 192.32 | -19.50 | 45.18 | 0.4455 | -497.0 | -291.7 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 19.89 | 192.10 | -19.71 | 44.85 | 0.4517 | -454.0 | -321.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 19.05 | 192.14 | -19.67 | 46.22 | 0.4426 | -764.0 | -579.0 | |
| 1.80 | 2.05 | 1.00 | 1.14 | 19.67 | 191.83 | -19.99 | 45.59 | 0.4524 | -668.1 | -636.7 | |
| 0.00 | 2.39 | 0.00 | 1.33 | 20.01 | 191.62 | -20.20 | 45.31 | 0.4583 | 668.0 | 538.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 16.36 | 191.30 | -20.52 | 52.29 | 0.4269 | -765.0 | -610.5 | |
| 0.00 | 3.93 | 0.00 | 2.21 | 20.75 | 190.67 | -21.15 | 45.34 | 0.4763 | -509.0 | -415.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.68 | 191.24 | -20.57 | 53.68 | 0.4217 | -780.0 | -661.7 | |
| 3.68 | 4.19 | 2.05 | 2.33 | 18.94 | 190.82 | -21.00 | 48.16 | 0.4568 | -820.9 | -758.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 15.10 | 191.24 | -20.58 | 54.86 | 0.4168 | -761.0 | -617.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.69 | 190.80 | -21.02 | 52.28 | 0.4361 | -814.0 | -714.3 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 19.00 | 190.38 | -21.44 | 48.62 | 0.4625 | -649.0 | -527.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 21.09 | 189.80 | -22.02 | 45.89 | 0.4891 | -560.0 | -430.7 | |
| 1.88 | 98.96 | 1.06 | 56.40 | 20.31 | 189.68 | -22.13 | 47.29 | 0.4829 | 996.5 | 627.9 | |
| 8.13 | -31.00 | 4.60 | -31.00 | 20.37 | 189.33 | -22.48 | 47.62 | 0.4874 | 1034.3 | 999999 | |
| 5.22 | -31.00 | 2.97 | -31.00 | 20.68 | 188.77 | -23.05 | 47.78 | 0.4966 | 1079.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 19.05 | 188.95 | -22.87 | 50.25 | 0.4797 | 810.0 | 650.8 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 22.12 | 188.07 | -23.74 | 46.33 | 0.5178 | 768.0 | 596.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 21.46 | 188.08 | -23.73 | 47.33 | 0.5115 | 259.0 | 255.1 | |
| 17.53 | -31.00 | 10.07 | -31.00 | 21.05 | 188.09 | -23.73 | 47.97 | 0.5077 | 905.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 21.74 | 187.90 | -23.92 | 47.10 | 0.5162 | 502.0 | 430.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 23.74 | 187.48 | -24.33 | 44.60 | 0.5393 | 818.0 | 649.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 22.31 | 187.76 | -24.06 | 46.39 | 0.5230 | 652.0 | 512.0 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 20.45 | 188.01 | -23.80 | 49.00 | 0.5031 | 656.0 | 446.8 | |
| 0.00 | 3.42 | 0.00 | 1.97 | 20.70 | 187.52 | -24.29 | 49.14 | 0.5109 | 722.0 | 607.0 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 24.31 | 186.40 | -25.42 | 44.95 | 0.5558 | 660.0 | 623.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 23.69 | 186.17 | -25.64 | 46.05 | 0.5526 | 633.0 | 496.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 24.56 | 185.55 | -26.27 | 45.47 | 0.5668 | 569.0 | 474.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 22.79 | 185.61 | -26.21 | 47.93 | 0.5506 | 879.0 | 679.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 24.46 | 185.10 | -26.71 | 46.06 | 0.5705 | 616.0 | 555.7 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 23.02 | 185.35 | -26.47 | 47.86 | 0.5554 | 464.0 | 506.0 | |
| 1.97 | 2.31 | 1.17 | 1.37 | 22.82 | 185.24 | -26.57 | 48.25 | 0.5548 | 875.0 | 830.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 23.08 | 185.19 | -26.63 | 47.93 | 0.5576 | 475.0 | 470.1 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 22.98 | 185.03 | -26.79 | 48.22 | 0.5585 | 823.0 | 726.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 23.27 | 184.90 | -26.92 | 47.94 | 0.5624 | 749.0 | 624.0 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 24.26 | 184.60 | -27.22 | 46.82 | 0.5740 | 749.0 | 641.1 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 23.23 | 184.69 | -27.13 | 48.19 | 0.5644 | 808.0 | 674.6 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 23.68 | 184.59 | -27.23 | 47.65 | 0.5692 | 647.0 | 456.0 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 24.51 | 184.32 | -27.50 | 46.73 | 0.5791 | 498.0 | 431.8 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 22.79 | 184.64 | -27.18 | 48.88 | 0.5611 | 695.0 | 621.8 | |
| 0.00 | 2.48 | 0.00 | 1.49 | 23.10 | 184.53 | -27.28 | 48.52 | 0.5649 | 949.0 | 720.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 23.39 | 184.47 | -27.35 | 48.17 | 0.5680 | 496.0 | 396.5 | |
| 0.00 | 2.39 | 0.00 | 1.44 | 22.85 | 184.34 | -27.48 | 49.08 | 0.5649 | 860.0 | 686.6 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 22.68 | 184.12 | -27.70 | 49.52 | 0.5660 | 581.0 | 495.7 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 23.07 | 184.03 | -27.78 | 49.05 | 0.5700 | 460.0 | 423.1 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 24.18 | 183.74 | -28.08 | 47.73 | 0.5825 | 590.0 | 421.4 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 22.81 | 183.87 | -27.94 | 49.57 | 0.5697 | 566.0 | 441.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 22.52 | 183.94 | -27.88 | 49.92 | 0.5667 | 548.0 | 456.5 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 20.53 | 183.89 | -27.93 | 52.97 | 0.5516 | 668.0 | 605.6 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 20.84 | 183.36 | -28.46 | 52.96 | 0.5601 | 465.0 | 390.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
