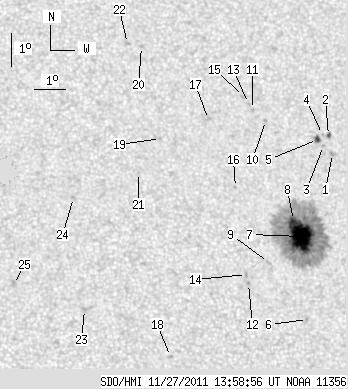

SDO HMI 2011-11-27 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.95 | 297.88 | 22.66 | 164.32 | 15.62 | 233.40 | 22.13 | 304.36 | 0.4416 | -913.0 | -412.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.45 | 17.89 | 235.05 | 23.79 | 306.73 | 0.4809 | -807.0 | -660.7 | |
| 1.62 | 2.05 | 0.92 | 1.16 | 18.45 | 235.00 | 23.73 | 307.76 | 0.4848 | -755.5 | -657.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 18.14 | 234.78 | 23.52 | 307.46 | 0.4796 | -958.0 | -807.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 18.48 | 234.80 | 23.53 | 308.03 | 0.4827 | -514.0 | -423.7 | |
| 2.39 | 3.59 | 1.35 | 2.02 | 18.33 | 234.61 | 23.34 | 307.98 | 0.4791 | -935.5 | -836.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 12.84 | 233.62 | 22.36 | 298.42 | 0.4235 | -908.0 | -799.0 | |
| 35.06 | 260.84 | 19.35 | 143.99 | 15.36 | 233.69 | 22.42 | 303.51 | 0.4429 | -1446.6 | -422.7 | |
| 1.88 | -7.00 | 1.04 | -7.00 | 15.85 | 233.48 | 22.21 | 304.70 | 0.4442 | -1065.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 14.58 | 232.51 | 21.25 | 303.26 | 0.4212 | -895.0 | -693.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 18.93 | 232.93 | 21.67 | 310.98 | 0.4645 | 830.0 | 617.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.28 | 232.54 | 21.28 | 312.06 | 0.4633 | -921.0 | -770.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 13.95 | 231.80 | 20.53 | 302.78 | 0.4066 | -960.0 | -817.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.47 | 232.43 | 21.17 | 312.52 | 0.4638 | -782.0 | -621.5 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 14.22 | 231.76 | 20.49 | 303.41 | 0.4083 | -804.0 | -598.6 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 19.69 | 232.29 | 21.03 | 313.07 | 0.4644 | -693.0 | -581.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 16.88 | 231.68 | 20.41 | 308.85 | 0.4303 | -817.0 | -610.9 | |
| 0.00 | 2.22 | 0.00 | 1.23 | 18.98 | 231.03 | 19.76 | 313.54 | 0.4430 | -695.0 | -624.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 11.76 | 229.12 | 17.85 | 301.17 | 0.3523 | 795.0 | 616.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 18.40 | 229.38 | 18.11 | 314.91 | 0.4183 | -734.0 | -563.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 21.28 | 229.09 | 17.82 | 320.14 | 0.4469 | -859.0 | -621.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 17.36 | 228.55 | 17.29 | 314.27 | 0.3978 | -685.0 | -522.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 21.37 | 228.63 | 17.37 | 320.99 | 0.4435 | -750.0 | -501.9 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 13.20 | 226.49 | 15.23 | 308.82 | 0.3297 | 922.0 | 740.3 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 16.61 | 226.39 | 15.13 | 316.51 | 0.3649 | 856.0 | 691.3 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 13.97 | 224.31 | 13.05 | 314.95 | 0.3109 | 577.0 | 494.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
