SDO HMI 2011-11-27 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.56 | 36.70 | 8.05 | 19.01 | 17.92 | 214.97 | 3.71 | 347.88 | 0.2950 | 471.8 | 458.3 | |
|
previous
or next observation for the same group /

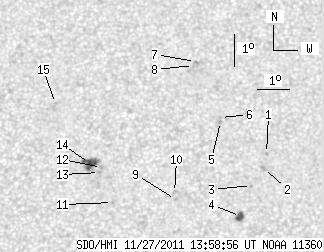

back to the solar disc SDO HMI 2011-11-27 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.30 | 218.46 | 7.20 | 337.79 | 0.3162 | 813.0 | 651.8 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 17.84 | 218.35 | 7.08 | 337.52 | 0.3084 | 893.0 | 749.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.32 | 217.96 | 6.69 | 337.97 | 0.2979 | 786.0 | 572.5 | |
| 5.30 | 5.56 | 2.74 | 2.87 | 16.37 | 217.58 | 6.32 | 337.82 | 0.2809 | -963.9 | -867.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.30 | 217.06 | 5.79 | 342.82 | 0.3238 | 933.0 | 812.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.42 | 217.06 | 5.80 | 342.92 | 0.3258 | 725.0 | 551.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.18 | 216.33 | 5.07 | 346.35 | 0.3503 | 688.0 | 558.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 21.05 | 216.26 | 5.00 | 346.43 | 0.3481 | 713.0 | 568.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.89 | 215.58 | 4.32 | 344.95 | 0.2784 | -987.0 | -712.1 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 17.11 | 215.56 | 4.29 | 345.24 | 0.2818 | -780.0 | -650.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.80 | 213.63 | 2.36 | 351.56 | 0.2703 | 846.0 | 636.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.88 | 213.30 | 2.04 | 353.21 | 0.2875 | 960.0 | 724.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.73 | 213.24 | 1.97 | 353.36 | 0.2848 | 1007.0 | 698.5 | |
| 10.26 | 14.45 | 5.31 | 7.47 | 18.00 | 212.93 | 1.66 | 354.49 | 0.2889 | 972.7 | 744.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 19.87 | 211.88 | 0.61 | 358.18 | 0.3188 | 810.0 | 605.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
