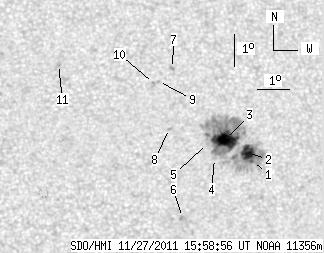

SDO HMI 2011-11-27 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.61 | 187.43 | 21.57 | 99.50 | 17.85 | 223.51 | 13.35 | 322.30 | 0.3611 | -955.6 | -414.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 173.92 | 0.73 | 92.36 | 17.25 | 224.25 | 14.09 | 319.74 | 0.3612 | -989.8 | -441.3 | |
| 12.31 | -1.00 | 6.54 | -1.00 | 17.53 | 224.11 | 13.95 | 320.53 | 0.3631 | -1187.0 | 999999 | |
| 26.93 | -1.00 | 14.30 | -1.00 | 17.94 | 223.44 | 13.28 | 322.60 | 0.3613 | -1223.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.35 | 223.05 | 12.88 | 322.37 | 0.3501 | -305.0 | -252.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.82 | 222.86 | 12.69 | 323.60 | 0.3541 | -405.0 | -422.1 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 15.55 | 221.92 | 11.76 | 321.36 | 0.3158 | 801.0 | 666.5 | |
| 0.00 | 2.39 | 0.00 | 1.28 | 20.15 | 221.91 | 11.75 | 329.34 | 0.3765 | -883.0 | -615.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 18.29 | 221.68 | 11.52 | 326.96 | 0.3492 | -860.0 | -620.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.75 | 221.43 | 11.27 | 329.78 | 0.3670 | -806.0 | -603.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 19.68 | 221.27 | 11.10 | 330.05 | 0.3648 | -697.0 | -600.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 20.29 | 218.27 | 8.11 | 337.82 | 0.3520 | 883.0 | 696.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
