SDO HMI 2011-11-27 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.06 | 182.73 | 18.92 | 98.56 | 17.82 | 223.64 | 16.79 | 315.99 | 0.3977 | -816.2 | -402.3 | |
|
previous
or next observation for the same group /

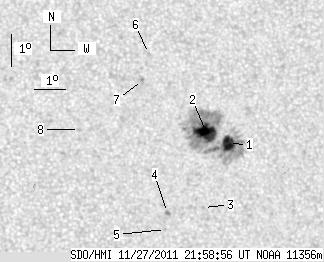

back to the solar disc SDO HMI 2011-11-27 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.89 | 174.19 | 6.42 | 93.99 | 17.61 | 224.19 | 17.34 | 314.70 | 0.4014 | -1113.7 | -436.8 | |
| 23.17 | -1.00 | 12.50 | -1.00 | 17.95 | 223.51 | 16.66 | 316.44 | 0.3975 | -1190.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 15.65 | 223.20 | 16.35 | 312.45 | 0.3691 | 631.0 | 412.0 | |
| 0.00 | 2.22 | 0.00 | 1.18 | 15.51 | 222.04 | 15.19 | 314.18 | 0.3538 | 873.0 | 761.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 14.99 | 221.94 | 15.09 | 313.26 | 0.3469 | 872.0 | 676.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 20.42 | 221.86 | 15.01 | 323.45 | 0.4095 | -611.0 | -492.3 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 19.58 | 221.59 | 14.74 | 322.61 | 0.3964 | -831.0 | -699.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.07 | 219.44 | 12.59 | 324.30 | 0.3566 | 757.0 | 524.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
