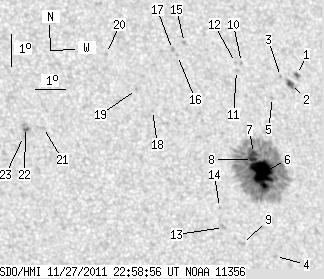

SDO HMI 2011-11-27 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.59 | 274.35 | 24.53 | 157.44 | 15.68 | 233.38 | 27.08 | 299.75 | 0.5069 | -899.3 | -406.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 2.57 | 0.91 | 1.52 | 18.40 | 235.35 | 29.05 | 302.74 | 0.5499 | -664.0 | -551.2 | |
| 3.25 | 6.33 | 1.92 | 3.73 | 18.13 | 235.05 | 28.75 | 302.53 | 0.5443 | -790.0 | -641.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.35 | 234.73 | 28.43 | 303.15 | 0.5420 | -727.0 | -583.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 12.85 | 233.74 | 27.44 | 294.23 | 0.4947 | -910.0 | -650.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 17.70 | 234.34 | 28.04 | 302.41 | 0.5326 | -738.0 | -494.3 | |
| 35.15 | 240.13 | 20.18 | 137.89 | 15.41 | 233.63 | 27.33 | 299.02 | 0.5082 | -1264.1 | -416.3 | |
| 0.26 | -6.00 | 0.15 | -6.00 | 15.99 | 233.40 | 27.10 | 300.25 | 0.5091 | -917.7 | 999999 | |
| 2.39 | -6.00 | 1.37 | -6.00 | 15.81 | 233.34 | 27.04 | 299.97 | 0.5071 | -1033.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 13.26 | 232.66 | 26.37 | 295.80 | 0.4821 | -897.0 | -719.1 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 18.79 | 233.43 | 27.14 | 305.00 | 0.5293 | -674.0 | -570.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 18.55 | 233.22 | 26.92 | 304.80 | 0.5248 | -663.0 | -528.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.79 | 233.22 | 26.93 | 305.20 | 0.5267 | -601.0 | -433.6 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 13.75 | 232.08 | 25.78 | 297.21 | 0.4770 | -841.0 | -710.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 14.36 | 232.02 | 25.72 | 298.42 | 0.4800 | -531.0 | -470.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 19.43 | 231.55 | 25.26 | 307.85 | 0.5117 | -677.0 | -592.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 19.03 | 231.25 | 24.95 | 307.50 | 0.5047 | -619.0 | -493.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 19.22 | 231.10 | 24.80 | 307.96 | 0.5045 | -804.0 | -684.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.34 | 230.14 | 23.84 | 305.73 | 0.4773 | -762.0 | -643.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 17.99 | 229.69 | 23.39 | 307.38 | 0.4771 | -782.0 | -606.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.11 | 228.83 | 22.53 | 310.30 | 0.4767 | -679.0 | -554.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 16.85 | 226.44 | 20.14 | 309.20 | 0.4270 | 673.0 | 495.4 | |
| 0.00 | 4.19 | 0.00 | 2.28 | 16.85 | 225.84 | 19.55 | 310.01 | 0.4198 | 800.0 | 760.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 16.58 | 225.75 | 19.45 | 309.61 | 0.4161 | 389.0 | 447.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
