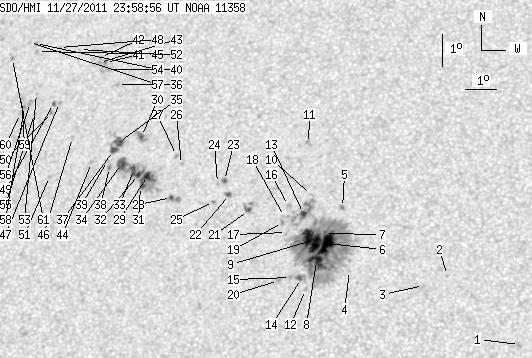

SDO HMI 2011-11-27 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.71 | 459.28 | 48.35 | 246.62 | 19.65 | 192.26 | -13.48 | 34.32 | 0.3858 | -129.6 | -204.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-27 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.05 | 15.63 | 200.87 | -4.87 | 18.32 | 0.2614 | -695.0 | -714.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.74 | 198.57 | -7.18 | 22.83 | 0.3080 | -684.0 | -527.6 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 17.43 | 197.83 | -7.91 | 25.33 | 0.3084 | -747.0 | -540.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.88 | 195.48 | -10.26 | 30.73 | 0.3333 | -891.0 | -664.6 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 19.83 | 195.14 | -10.61 | 28.59 | 0.3635 | -931.0 | -700.1 | |
| 15.91 | 284.88 | 8.41 | 150.67 | 18.71 | 194.70 | -11.04 | 31.23 | 0.3514 | -1418.8 | -523.1 | |
| 1.37 | -6.00 | 0.72 | -6.00 | 19.02 | 194.62 | -11.13 | 30.94 | 0.3564 | -897.9 | 999999 | |
| 9.92 | -6.00 | 5.24 | -6.00 | 18.19 | 194.42 | -11.33 | 32.72 | 0.3467 | -1287.3 | 999999 | |
| 21.55 | -6.00 | 11.42 | -6.00 | 18.80 | 194.22 | -11.53 | 32.17 | 0.3569 | -1143.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 20.21 | 194.12 | -11.63 | 30.28 | 0.3768 | -403.0 | -440.5 | |
| 0.00 | 2.31 | 0.00 | 1.25 | 21.84 | 193.89 | -11.86 | 28.53 | 0.4010 | -686.0 | -710.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.29 | 194.13 | -11.62 | 34.92 | 0.3374 | -468.0 | -303.2 | |
| 2.99 | -6.00 | 1.60 | -6.00 | 19.64 | 193.90 | -11.84 | 31.56 | 0.3709 | -941.6 | 999999 | |
| 0.00 | 6.07 | 0.00 | 3.20 | 17.63 | 193.98 | -11.77 | 34.65 | 0.3433 | -1042.0 | -810.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 17.66 | 193.63 | -12.12 | 35.38 | 0.3470 | -1030.0 | -784.7 | |
| 0.00 | 2.39 | 0.00 | 1.28 | 19.89 | 193.40 | -12.35 | 32.24 | 0.3786 | -609.0 | -502.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.05 | 193.40 | -12.34 | 33.54 | 0.3674 | -243.0 | -249.3 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 19.55 | 193.30 | -12.45 | 32.97 | 0.3749 | -372.0 | -290.3 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 19.36 | 193.25 | -12.50 | 33.36 | 0.3728 | -661.0 | -496.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 17.56 | 193.26 | -12.49 | 36.36 | 0.3493 | -1018.0 | -788.8 | |
| 1.45 | 6.16 | 0.78 | 3.31 | 19.73 | 192.12 | -13.62 | 35.03 | 0.3879 | -895.6 | -575.1 | |
| 1.97 | 2.74 | 1.06 | 1.48 | 20.22 | 191.46 | -14.28 | 35.51 | 0.4003 | -945.6 | -860.8 | |
| 0.77 | 2.14 | 0.42 | 1.16 | 20.66 | 191.26 | -14.49 | 35.21 | 0.4078 | -925.6 | -723.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 20.57 | 191.04 | -14.71 | 35.75 | 0.4086 | -725.0 | -539.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 20.00 | 190.96 | -14.78 | 36.77 | 0.4023 | -789.0 | -642.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.16 | 189.80 | -15.95 | 37.01 | 0.4276 | 566.0 | 545.8 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 21.44 | 189.60 | -16.15 | 36.91 | 0.4329 | -791.0 | -550.1 | |
| 1.71 | 6.50 | 0.93 | 3.54 | 20.12 | 189.58 | -16.17 | 38.99 | 0.4173 | 907.1 | 827.8 | |
| 3.34 | 63.20 | 1.83 | 34.77 | 20.80 | 188.71 | -17.03 | 39.32 | 0.4340 | 1124.3 | 713.2 | |
| 1.62 | 6.93 | 0.90 | 3.84 | 22.03 | 188.36 | -17.38 | 38.00 | 0.4517 | 976.4 | 809.0 | |
| 0.68 | -29.00 | 0.38 | -29.00 | 20.46 | 188.52 | -17.23 | 40.17 | 0.4319 | 706.2 | 999999 | |
| 1.97 | -29.00 | 1.08 | -29.00 | 20.83 | 188.41 | -17.34 | 39.75 | 0.4374 | 1128.4 | 999999 | |
| 5.05 | -29.00 | 2.78 | -29.00 | 20.96 | 188.23 | -17.52 | 39.84 | 0.4406 | 1047.8 | 999999 | |
| 8.38 | -29.00 | 4.64 | -29.00 | 21.17 | 187.80 | -17.94 | 40.15 | 0.4474 | 929.8 | 999999 | |
| 5.73 | 15.22 | 3.19 | 8.47 | 21.84 | 187.62 | -18.13 | 39.42 | 0.4568 | 929.5 | 710.5 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 23.68 | 187.33 | -18.42 | 37.19 | 0.4807 | 866.0 | 679.8 | |
| 3.93 | -35.00 | 2.19 | -35.00 | 21.58 | 187.48 | -18.26 | 40.00 | 0.4552 | 913.0 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.09 | 21.05 | 187.42 | -18.33 | 40.93 | 0.4499 | 917.0 | 721.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 21.27 | 187.32 | -18.42 | 40.73 | 0.4533 | 669.0 | 532.1 | |
| 0.00 | 4.19 | 0.00 | 2.38 | 24.16 | 186.88 | -18.87 | 37.17 | 0.4903 | 865.0 | 674.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 24.38 | 186.81 | -18.94 | 36.97 | 0.4935 | 807.0 | 717.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 24.54 | 186.61 | -19.13 | 37.03 | 0.4972 | 610.0 | 521.4 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 24.38 | 186.61 | -19.14 | 37.25 | 0.4954 | 881.0 | 730.5 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 21.20 | 186.80 | -18.95 | 41.60 | 0.4580 | 793.0 | 663.0 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 24.79 | 185.85 | -19.90 | 37.73 | 0.5071 | 562.0 | 447.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 21.98 | 186.05 | -19.70 | 41.45 | 0.4742 | 786.0 | 641.4 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 23.09 | 185.44 | -20.31 | 40.64 | 0.4923 | 876.0 | 644.5 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 24.85 | 185.14 | -20.60 | 38.57 | 0.5143 | 709.0 | 599.5 | |
| 1.37 | 1.80 | 0.78 | 1.02 | 23.06 | 185.23 | -20.51 | 40.95 | 0.4940 | 715.2 | 461.8 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 22.77 | 185.21 | -20.53 | 41.40 | 0.4911 | 994.0 | 822.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 20.75 | 185.45 | -20.30 | 44.18 | 0.4675 | 751.0 | 582.2 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 24.72 | 184.40 | -21.35 | 39.69 | 0.5199 | 721.0 | 699.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 23.37 | 184.60 | -21.15 | 41.32 | 0.5037 | 760.0 | 626.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 24.98 | 184.28 | -21.47 | 39.49 | 0.5237 | 745.0 | 600.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 22.73 | 184.63 | -21.11 | 42.20 | 0.4966 | 855.0 | 645.9 | |
| 0.00 | 2.31 | 0.00 | 1.32 | 23.08 | 184.44 | -21.31 | 41.94 | 0.5022 | 617.0 | 691.7 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 25.01 | 184.06 | -21.68 | 39.72 | 0.5261 | 667.0 | 371.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 22.95 | 184.25 | -21.49 | 42.36 | 0.5028 | 912.0 | 784.2 | |
| 0.00 | 2.91 | 0.00 | 1.67 | 23.24 | 184.10 | -21.65 | 42.13 | 0.5073 | 629.0 | 567.2 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 22.73 | 184.15 | -21.59 | 42.81 | 0.5015 | 520.0 | 478.1 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 24.49 | 183.56 | -22.18 | 41.03 | 0.5255 | 787.0 | 626.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
