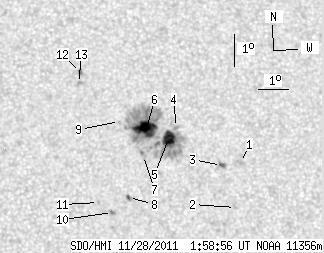

SDO HMI 2011-11-28 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.75 | 175.70 | 21.18 | 96.00 | 17.78 | 223.76 | 19.12 | 312.39 | 0.4242 | -691.3 | -366.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 1.71 | 16.91 | 226.49 | 21.84 | 307.22 | 0.4489 | 542.0 | 518.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 15.53 | 226.16 | 21.52 | 304.97 | 0.4331 | 860.0 | 688.6 | |
| 1.88 | 3.68 | 1.04 | 2.03 | 16.82 | 225.85 | 21.20 | 307.84 | 0.4401 | 836.8 | 532.4 | |
| 0.00 | 2.48 | 0.00 | 1.36 | 18.00 | 224.49 | 19.85 | 311.78 | 0.4348 | 66.0 | 74.8 | |
| 12.66 | 58.51 | 6.93 | 32.00 | 17.66 | 224.19 | 19.54 | 311.58 | 0.4279 | -1083.2 | -518.7 | |
| 22.84 | 92.55 | 12.47 | 50.56 | 17.98 | 223.50 | 18.86 | 313.13 | 0.4230 | -1182.1 | -385.2 | |
| 0.00 | 2.65 | 0.00 | 1.44 | 17.15 | 223.31 | 18.67 | 311.86 | 0.4124 | -704.0 | -774.7 | |
| 1.37 | 1.97 | 0.74 | 1.06 | 15.86 | 222.70 | 18.05 | 310.25 | 0.3922 | 537.8 | 315.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 18.20 | 222.64 | 17.99 | 314.81 | 0.4155 | -672.0 | -545.0 | |
| 0.00 | 2.48 | 0.00 | 1.33 | 15.41 | 222.14 | 17.50 | 310.16 | 0.3809 | 1092.0 | 846.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 15.72 | 221.72 | 17.07 | 311.47 | 0.3788 | 743.0 | 592.5 | |
| 0.00 | 2.82 | 0.00 | 1.54 | 19.73 | 221.53 | 16.88 | 319.22 | 0.4203 | -921.0 | -730.1 | |
| 0.00 | 2.40 | 0.00 | 1.30 | 19.39 | 221.43 | 16.78 | 318.81 | 0.4153 | -889.0 | -631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
