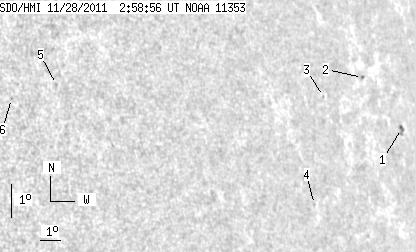

SDO HMI 2011-11-28 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 8.73 | 1.24 | 8.51 | 8.80 | 263.17 | 59.07 | 279.64 | 0.8563 | 46.5 | -79.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 3.85 | 1.24 | 4.28 | 8.43 | 267.55 | 63.45 | 278.77 | 0.8972 | -352.2 | -360.4 | |
| 0.00 | 1.20 | 0.00 | 1.25 | 10.00 | 265.49 | 61.39 | 280.67 | 0.8817 | 329.0 | 286.3 | |
| 0.00 | 0.77 | 0.00 | 0.74 | 9.47 | 262.96 | 58.86 | 280.27 | 0.8601 | -385.0 | -318.6 | |
| 0.00 | 0.86 | 0.00 | 0.79 | 6.27 | 261.72 | 57.63 | 276.60 | 0.8472 | -310.0 | -286.6 | |
| 0.00 | 1.28 | 0.00 | 0.92 | 10.06 | 249.87 | 45.77 | 282.70 | 0.7256 | 549.0 | 397.6 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 9.67 | 247.89 | 43.80 | 282.54 | 0.7013 | 544.0 | 483.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
