SDO HMI 2011-11-28 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.81 | 145.61 | 17.40 | 115.85 | 14.46 | 252.23 | 50.31 | 287.57 | 0.7838 | -658.3 | -279.8 | |
|
previous
or next observation for the same group /

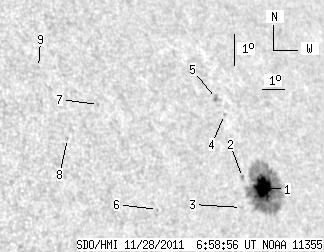

back to the solar disc SDO HMI 2011-11-28 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.81 | 135.00 | 17.40 | 107.80 | 14.35 | 252.43 | 50.51 | 287.38 | 0.7858 | -966.4 | -285.1 | |
| 0.00 | 2.14 | 0.00 | 1.68 | 14.66 | 251.57 | 49.65 | 287.97 | 0.7774 | -687.0 | -593.7 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 13.76 | 251.25 | 49.33 | 286.89 | 0.7723 | -340.0 | -310.2 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 16.60 | 251.35 | 49.44 | 290.47 | 0.7794 | -533.0 | -469.4 | |
| 0.00 | 3.08 | 0.00 | 2.42 | 17.09 | 251.14 | 49.23 | 291.15 | 0.7785 | -750.0 | -600.2 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 13.75 | 247.45 | 45.53 | 287.80 | 0.7304 | 543.0 | 456.6 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 16.99 | 245.78 | 43.86 | 292.67 | 0.7205 | 548.0 | 463.9 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 15.97 | 244.18 | 42.26 | 291.85 | 0.6990 | 608.0 | 551.1 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 18.17 | 243.58 | 41.66 | 295.10 | 0.6999 | 706.0 | 594.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
