SDO HMI 2011-11-28 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.07 | 186.93 | 19.51 | 103.96 | 17.75 | 223.70 | 21.79 | 308.89 | 0.4563 | -516.8 | -340.3 | |
|
previous
or next observation for the same group /

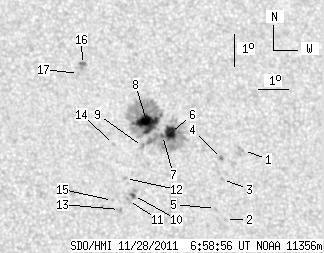

back to the solar disc SDO HMI 2011-11-28 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | 17.12 | 226.65 | 24.73 | 304.52 | 0.4873 | 591.0 | 514.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 15.02 | 225.76 | 23.85 | 301.51 | 0.4600 | 812.0 | 639.7 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 16.24 | 225.81 | 23.90 | 303.77 | 0.4699 | 649.0 | 507.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 16.88 | 225.87 | 23.95 | 304.89 | 0.4756 | 960.0 | 819.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 15.35 | 225.47 | 23.55 | 302.46 | 0.4586 | 807.0 | 624.9 | |
| 10.69 | 162.46 | 5.97 | 90.44 | 17.70 | 224.25 | 22.34 | 308.14 | 0.4624 | -1058.9 | -411.6 | |
| 1.54 | -6.00 | 0.86 | -6.00 | 17.61 | 223.97 | 22.06 | 308.30 | 0.4581 | -1026.6 | 999999 | |
| 21.30 | -6.00 | 11.84 | -6.00 | 17.98 | 223.52 | 21.61 | 309.52 | 0.4560 | -1146.3 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.37 | 17.27 | 223.26 | 21.35 | 308.56 | 0.4465 | -816.0 | -674.5 | |
| 1.54 | 4.45 | 0.84 | 2.44 | 15.77 | 222.79 | 20.88 | 306.28 | 0.4273 | 645.9 | 118.6 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 15.62 | 222.61 | 20.70 | 306.21 | 0.4237 | 647.0 | 629.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 16.29 | 222.59 | 20.67 | 307.56 | 0.4293 | 624.0 | 465.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.35 | 222.29 | 20.38 | 306.07 | 0.4172 | 944.0 | 815.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.34 | 222.31 | 20.40 | 309.89 | 0.4355 | -720.0 | -590.1 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 15.62 | 222.09 | 20.18 | 306.88 | 0.4170 | 636.0 | 522.0 | |
| 0.00 | 4.28 | 0.00 | 2.37 | 19.83 | 221.59 | 19.67 | 315.25 | 0.4517 | -861.0 | -698.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.55 | 221.42 | 19.50 | 315.01 | 0.4469 | -839.0 | -587.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
