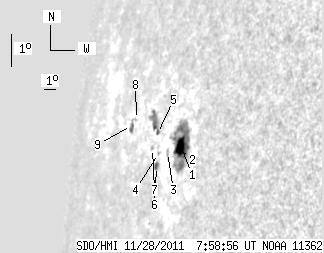

SDO HMI 2011-11-28 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.01 | 86.38 | 19.69 | 134.68 | 7.60 | 129.93 | -71.44 | 82.41 | 0.9490 | -303.5 | -54.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.73 | 59.62 | 12.87 | 88.04 | 7.55 | 130.96 | -70.41 | 82.43 | 0.9436 | -562.3 | -205.3 | |
| 1.54 | -1.00 | 2.31 | -1.00 | 7.49 | 130.62 | -70.75 | 82.51 | 0.9456 | 161.0 | 999999 | |
| 0.00 | 3.34 | 0.00 | 5.21 | 7.32 | 129.84 | -71.53 | 82.70 | 0.9499 | -241.0 | -94.0 | |
| 0.00 | 1.11 | 0.00 | 1.82 | 7.27 | 128.97 | -72.40 | 82.77 | 0.9544 | -162.0 | -123.6 | |
| 0.60 | 12.23 | 1.00 | 20.97 | 7.86 | 128.62 | -72.75 | 82.16 | 0.9563 | -85.3 | 376.2 | |
| 2.14 | 2.99 | 3.51 | 4.92 | 6.88 | 128.93 | -72.44 | 83.18 | 0.9546 | -189.4 | -26.8 | |
| 0.00 | 1.45 | 0.00 | 2.47 | 7.41 | 128.30 | -73.07 | 82.64 | 0.9578 | 22.0 | 119.6 | |
| 0.00 | 0.94 | 0.00 | 1.83 | 8.23 | 126.11 | -75.25 | 81.82 | 0.9681 | 442.0 | 386.5 | |
| 0.00 | 4.70 | 0.00 | 9.42 | 8.04 | 125.61 | -75.76 | 82.02 | 0.9702 | 61.0 | 98.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
