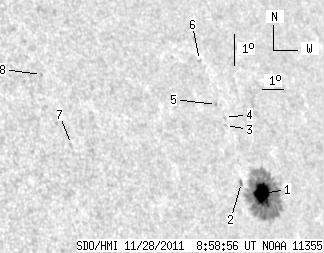

SDO HMI 2011-11-28 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.81 | 139.60 | 17.80 | 113.75 | 14.47 | 252.26 | 51.44 | 287.37 | 0.7955 | -755.9 | -280.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.81 | 131.47 | 17.80 | 107.42 | 14.35 | 252.41 | 51.59 | 287.17 | 0.7968 | -966.6 | -280.8 | |
| 0.00 | 2.05 | 0.00 | 1.65 | 14.70 | 251.54 | 50.72 | 287.79 | 0.7886 | -647.0 | -584.5 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 16.45 | 251.36 | 50.54 | 290.02 | 0.7904 | -436.0 | -369.4 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 16.70 | 251.40 | 50.58 | 290.31 | 0.7913 | -434.0 | -353.2 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 17.10 | 251.16 | 50.34 | 290.87 | 0.7898 | -711.0 | -598.0 | |
| 0.00 | 1.45 | 0.00 | 1.17 | 18.47 | 250.86 | 50.04 | 292.65 | 0.7901 | -620.0 | -448.8 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 15.98 | 244.23 | 43.40 | 291.47 | 0.7122 | 671.0 | 502.8 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 18.14 | 243.58 | 42.75 | 294.65 | 0.7121 | 636.0 | 557.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
