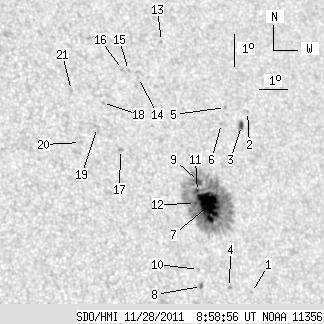

SDO HMI 2011-11-28 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.03 | 236.42 | 27.94 | 143.39 | 15.68 | 233.38 | 32.55 | 295.96 | 0.5787 | -965.9 | -386.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.68 | 12.75 | 234.65 | 33.83 | 290.48 | 0.5819 | -646.0 | -542.5 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 18.28 | 235.56 | 34.73 | 298.71 | 0.6192 | -586.0 | -545.1 | |
| 2.91 | 4.53 | 1.82 | 2.83 | 17.85 | 235.23 | 34.41 | 298.26 | 0.6130 | -713.9 | -591.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 12.91 | 233.88 | 33.05 | 291.13 | 0.5722 | -658.0 | -573.9 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 18.41 | 234.76 | 33.93 | 299.40 | 0.6102 | -690.0 | -529.3 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 17.92 | 234.50 | 33.67 | 298.81 | 0.6044 | -730.0 | -631.3 | |
| 34.30 | 210.08 | 20.80 | 127.43 | 15.41 | 233.52 | 32.70 | 295.44 | 0.5790 | -1211.8 | -360.0 | |
| 1.71 | 2.65 | 1.02 | 1.58 | 12.95 | 232.87 | 32.05 | 291.71 | 0.5588 | -790.7 | -678.5 | |
| 4.11 | -7.00 | 2.49 | -7.00 | 16.14 | 233.29 | 32.47 | 296.77 | 0.5798 | -848.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 13.47 | 232.84 | 32.02 | 292.61 | 0.5607 | -658.0 | -537.3 | |
| 2.14 | -7.00 | 1.29 | -7.00 | 15.84 | 233.20 | 32.37 | 296.34 | 0.5770 | -929.0 | 999999 | |
| 0.86 | -7.00 | 0.52 | -7.00 | 15.47 | 233.06 | 32.24 | 295.83 | 0.5733 | -1208.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 20.49 | 232.84 | 32.01 | 303.81 | 0.5999 | -705.0 | -573.7 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 19.38 | 231.74 | 30.91 | 302.93 | 0.5797 | -741.0 | -514.6 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 19.60 | 231.42 | 30.60 | 303.51 | 0.5773 | -593.0 | -475.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 19.63 | 231.21 | 30.38 | 303.72 | 0.5750 | -821.0 | -647.4 | |
| 0.00 | 1.88 | 0.00 | 1.12 | 17.16 | 230.66 | 29.83 | 300.20 | 0.5522 | -837.0 | -709.7 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 18.61 | 230.28 | 29.46 | 302.85 | 0.5569 | -544.0 | -540.1 | |
| 0.00 | 2.74 | 0.00 | 1.62 | 17.84 | 229.96 | 29.13 | 301.86 | 0.5478 | -579.0 | -658.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 17.39 | 229.27 | 28.45 | 301.65 | 0.5362 | -758.0 | -639.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 19.00 | 229.24 | 28.42 | 304.31 | 0.5470 | -678.0 | -599.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
