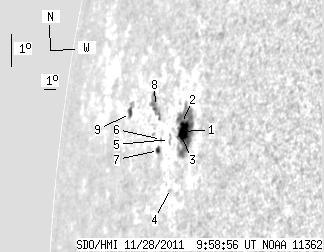

SDO HMI 2011-11-28 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.60 | 84.16 | 20.43 | 123.91 | 7.63 | 129.86 | -70.42 | 82.34 | 0.9433 | -217.7 | -121.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.95 | 57.05 | 11.11 | 79.46 | 7.51 | 131.03 | -69.25 | 82.44 | 0.9368 | -537.4 | -270.3 | |
| 0.51 | -1.00 | 0.73 | -1.00 | 7.75 | 130.77 | -69.51 | 82.20 | 0.9384 | 75.7 | 999999 | |
| 1.03 | -1.00 | 1.46 | -1.00 | 7.48 | 130.69 | -69.58 | 82.49 | 0.9388 | 187.8 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.61 | 5.80 | 130.44 | -69.83 | 84.28 | 0.9401 | -240.0 | -238.6 | |
| 0.00 | 2.99 | 0.00 | 4.41 | 7.25 | 129.89 | -70.39 | 82.75 | 0.9435 | -245.0 | -149.0 | |
| 0.00 | 1.20 | 0.00 | 1.83 | 7.24 | 129.16 | -71.12 | 82.78 | 0.9476 | -196.0 | -166.5 | |
| 1.63 | 2.82 | 2.51 | 4.36 | 6.90 | 129.00 | -71.27 | 83.14 | 0.9484 | -167.2 | -36.6 | |
| 0.00 | 13.60 | 0.00 | 21.92 | 8.20 | 128.19 | -72.09 | 81.78 | 0.9530 | 393.0 | 269.0 | |
| 2.48 | 6.07 | 4.62 | 11.32 | 7.94 | 125.66 | -74.62 | 82.11 | 0.9653 | 222.8 | 82.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
