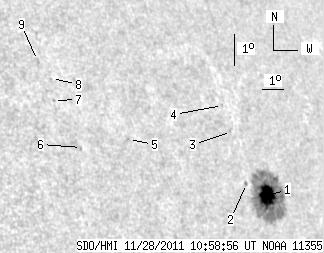

SDO HMI 2011-11-28 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.87 | 138.35 | 17.45 | 115.19 | 14.47 | 252.19 | 52.46 | 287.18 | 0.8057 | -595.2 | -252.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.87 | 130.67 | 17.45 | 109.35 | 14.35 | 252.46 | 52.73 | 286.96 | 0.8082 | -929.6 | -272.6 | |
| 0.00 | 1.62 | 0.00 | 1.33 | 14.74 | 251.53 | 51.80 | 287.61 | 0.7997 | -627.0 | -579.8 | |
| 0.00 | 0.68 | 0.00 | 0.56 | 16.33 | 251.35 | 51.62 | 289.62 | 0.8009 | -451.0 | -479.0 | |
| 0.00 | 0.60 | 0.00 | 0.49 | 17.13 | 251.21 | 51.48 | 290.64 | 0.8012 | -651.0 | -589.3 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 16.16 | 246.42 | 46.69 | 290.69 | 0.7494 | 538.0 | 402.8 | |
| 0.00 | 0.68 | 0.00 | 0.49 | 15.95 | 244.28 | 44.55 | 291.06 | 0.7251 | 629.0 | 549.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 17.41 | 243.49 | 43.76 | 293.28 | 0.7209 | 367.0 | 399.4 | |
| 0.00 | 0.51 | 0.00 | 0.37 | 18.08 | 243.62 | 43.89 | 294.14 | 0.7245 | 671.0 | 599.0 | |
| 0.00 | 1.62 | 0.00 | 1.16 | 18.65 | 243.19 | 43.46 | 295.06 | 0.7218 | 596.0 | 520.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
