SDO HMI 2011-11-28 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.75 | 243.67 | 28.12 | 149.47 | 15.70 | 233.32 | 33.59 | 295.44 | 0.5921 | -949.4 | -366.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

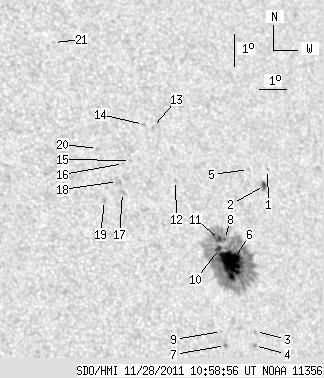

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.65 | 18.28 | 235.49 | 35.76 | 298.14 | 0.6316 | -440.0 | -355.3 | |
| 2.14 | 3.68 | 1.36 | 2.33 | 17.79 | 235.26 | 35.53 | 297.54 | 0.6264 | -686.0 | -618.7 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 13.34 | 234.05 | 34.32 | 291.23 | 0.5908 | -607.0 | -494.6 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 12.92 | 233.95 | 34.22 | 290.59 | 0.5877 | -722.0 | -639.5 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 18.29 | 234.77 | 35.04 | 298.57 | 0.6229 | -630.0 | -464.2 | |
| 37.71 | 217.31 | 23.15 | 133.43 | 15.41 | 233.53 | 33.80 | 294.84 | 0.5932 | -1169.2 | -337.5 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 12.93 | 232.89 | 33.16 | 291.12 | 0.5737 | -955.0 | -765.3 | |
| 1.11 | -6.00 | 0.68 | -6.00 | 16.15 | 233.41 | 33.68 | 296.07 | 0.5952 | -569.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 13.35 | 232.81 | 33.08 | 291.87 | 0.5744 | -789.0 | -654.6 | |
| 2.31 | -6.00 | 1.41 | -6.00 | 15.88 | 233.17 | 33.44 | 295.78 | 0.5909 | -944.9 | 999999 | |
| 2.48 | -6.00 | 1.52 | -6.00 | 16.15 | 233.22 | 33.49 | 296.18 | 0.5929 | -912.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 17.98 | 231.96 | 32.23 | 299.85 | 0.5871 | -626.0 | -476.0 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 19.64 | 231.47 | 31.74 | 302.73 | 0.5912 | -605.0 | -509.5 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 19.73 | 231.16 | 31.43 | 303.10 | 0.5881 | -674.0 | -580.7 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 18.62 | 230.45 | 30.72 | 301.91 | 0.5724 | -737.0 | -620.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 18.53 | 230.18 | 30.44 | 301.97 | 0.5685 | -585.0 | -397.9 | |
| 0.00 | 2.74 | 0.00 | 1.63 | 17.63 | 229.97 | 30.24 | 300.69 | 0.5603 | -775.0 | -672.5 | |
| 0.00 | 4.45 | 0.00 | 2.66 | 17.97 | 229.85 | 30.12 | 301.33 | 0.5610 | -607.0 | -584.2 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 17.39 | 229.28 | 29.55 | 300.82 | 0.5501 | -790.0 | -640.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 19.00 | 229.33 | 29.60 | 303.37 | 0.5614 | -714.0 | -528.8 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 22.34 | 228.44 | 28.71 | 309.20 | 0.5755 | -527.0 | -486.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
