SDO HMI 2011-11-28 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.22 | 106.43 | 35.55 | 143.24 | 7.61 | 129.70 | -68.39 | 82.30 | 0.9309 | -79.3 | -144.5 | |
|
previous
or next observation for the same group /

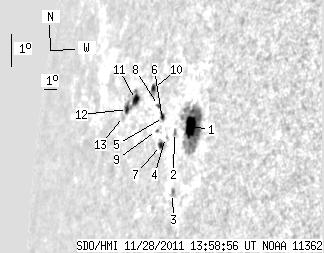

back to the solar disc SDO HMI 2011-11-28 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.86 | 68.05 | 13.71 | 85.71 | 7.52 | 131.21 | -66.88 | 82.35 | 0.9217 | -585.6 | -252.9 | |
| 0.00 | 2.48 | 0.00 | 3.29 | 7.32 | 130.01 | -68.08 | 82.61 | 0.9295 | -296.0 | -222.0 | |
| 0.00 | 3.33 | 0.00 | 4.35 | 5.51 | 130.35 | -67.73 | 84.56 | 0.9270 | -513.0 | -405.7 | |
| 0.00 | 0.60 | 0.00 | 0.82 | 7.16 | 129.32 | -68.77 | 82.80 | 0.9338 | -367.0 | -341.7 | |
| 1.03 | 3.16 | 1.43 | 4.43 | 7.75 | 128.95 | -69.14 | 82.18 | 0.9362 | 44.8 | -14.6 | |
| 0.26 | -5.00 | 0.36 | -5.00 | 7.69 | 128.89 | -69.20 | 82.25 | 0.9365 | -58.7 | 999999 | |
| 2.22 | 3.25 | 3.08 | 4.51 | 6.91 | 128.98 | -69.11 | 83.08 | 0.9358 | -247.3 | -118.3 | |
| 1.11 | 2.05 | 1.59 | 2.93 | 8.10 | 128.39 | -69.70 | 81.83 | 0.9396 | -109.1 | 49.9 | |
| 0.00 | 1.20 | 0.00 | 1.70 | 7.35 | 128.49 | -69.60 | 82.62 | 0.9389 | 94.0 | 67.3 | |
| 2.22 | 5.30 | 3.28 | 7.82 | 8.59 | 127.74 | -70.35 | 81.32 | 0.9434 | 404.0 | 445.5 | |
| 5.21 | 14.62 | 8.29 | 23.66 | 8.23 | 126.21 | -71.88 | 81.74 | 0.9518 | 508.3 | 256.0 | |
| 2.31 | -11.00 | 3.81 | -11.00 | 7.92 | 125.56 | -72.53 | 82.09 | 0.9552 | 277.1 | 999999 | |
| 0.00 | 2.39 | 0.00 | 4.02 | 7.70 | 125.24 | -72.84 | 82.32 | 0.9568 | 172.0 | 117.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
