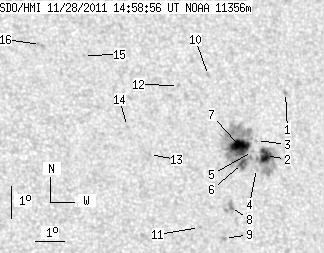

SDO HMI 2011-11-28 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.17 | 154.80 | 19.11 | 89.01 | 17.96 | 223.53 | 25.99 | 304.82 | 0.5100 | -580.6 | -351.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.86 | 19.75 | 225.41 | 27.87 | 306.02 | 0.5461 | 780.0 | 623.3 | |
| 10.34 | 131.73 | 5.98 | 75.87 | 17.81 | 224.36 | 26.82 | 303.77 | 0.5189 | -950.1 | -446.0 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 18.27 | 224.12 | 26.59 | 304.77 | 0.5195 | -462.0 | -289.7 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 17.41 | 223.98 | 26.45 | 303.44 | 0.5113 | -810.0 | -740.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 17.93 | 223.93 | 26.39 | 304.38 | 0.5145 | -813.0 | -564.5 | |
| 3.68 | -2.00 | 2.11 | -2.00 | 17.57 | 223.52 | 25.99 | 304.13 | 0.5067 | -1008.4 | 999999 | |
| 19.15 | -2.00 | 11.02 | -2.00 | 18.09 | 223.54 | 26.00 | 305.01 | 0.5109 | -1111.1 | 999999 | |
| 0.00 | 6.15 | 0.00 | 3.49 | 16.22 | 222.92 | 25.38 | 302.33 | 0.4890 | -12.0 | -140.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 15.28 | 222.59 | 25.05 | 300.90 | 0.4780 | 986.0 | 790.1 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 20.31 | 222.80 | 25.26 | 309.39 | 0.5199 | -693.0 | -561.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 15.62 | 221.78 | 24.25 | 302.31 | 0.4699 | 602.0 | 490.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 20.00 | 221.71 | 24.17 | 310.05 | 0.5046 | -759.0 | -597.3 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 17.87 | 220.40 | 22.86 | 307.90 | 0.4705 | 722.0 | 560.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 18.74 | 219.77 | 22.24 | 310.14 | 0.4707 | 753.0 | 593.0 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 20.97 | 218.60 | 21.07 | 315.27 | 0.4790 | 631.0 | 462.5 | |
| 0.00 | 2.91 | 0.00 | 1.63 | 21.32 | 217.20 | 19.66 | 317.71 | 0.4677 | 487.0 | 494.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
