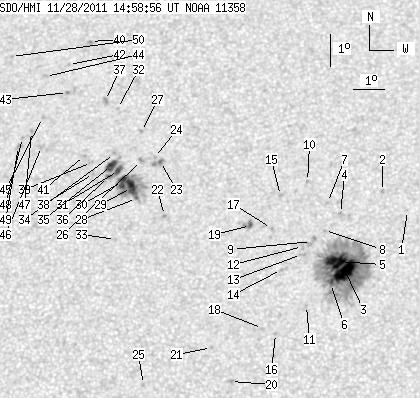

SDO HMI 2011-11-28 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.30 | 389.56 | 37.62 | 204.88 | 19.83 | 192.10 | -5.44 | 14.68 | 0.3354 | -91.5 | -202.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 20.61 | 196.63 | -0.90 | 2.55 | 0.3334 | -731.0 | -598.4 | |
| 0.00 | 2.14 | 0.00 | 1.13 | 21.20 | 195.84 | -1.70 | 4.63 | 0.3440 | -832.0 | -590.8 | |
| 22.65 | 233.37 | 11.78 | 121.37 | 18.70 | 194.71 | -2.83 | 8.85 | 0.3051 | -1509.6 | -521.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 20.51 | 194.52 | -3.02 | 8.50 | 0.3352 | -711.0 | -530.6 | |
| 13.85 | -3.00 | 7.21 | -3.00 | 19.01 | 194.42 | -3.12 | 9.56 | 0.3109 | -1232.6 | 999999 | |
| 0.51 | -3.00 | 0.27 | -3.00 | 18.33 | 194.25 | -3.29 | 10.50 | 0.3002 | -999.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.85 | 194.10 | -3.44 | 9.48 | 0.3418 | -745.0 | -593.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 19.98 | 194.03 | -3.51 | 10.16 | 0.3278 | -816.0 | -646.2 | |
| 0.00 | 5.47 | 0.00 | 2.86 | 19.63 | 193.62 | -3.91 | 11.51 | 0.3235 | -671.0 | -658.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 21.51 | 193.45 | -4.09 | 10.84 | 0.3544 | -831.0 | -628.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.65 | 193.51 | -4.02 | 13.31 | 0.2916 | -895.0 | -656.6 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 19.48 | 193.35 | -4.19 | 12.42 | 0.3219 | -588.0 | -450.6 | |
| 0.00 | 2.74 | 0.00 | 1.43 | 19.23 | 193.32 | -4.22 | 12.67 | 0.3180 | -679.0 | -565.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.76 | 192.71 | -4.83 | 14.84 | 0.3129 | -728.0 | -554.4 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 21.07 | 192.60 | -4.94 | 13.31 | 0.3502 | -698.0 | -601.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.79 | 192.57 | -4.96 | 17.17 | 0.2819 | -840.0 | -631.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 20.04 | 192.35 | -5.19 | 14.76 | 0.3348 | -773.0 | -636.8 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 16.94 | 192.17 | -5.37 | 18.31 | 0.2864 | -812.0 | -632.2 | |
| 1.80 | 5.90 | 0.94 | 3.10 | 20.13 | 191.68 | -5.85 | 16.47 | 0.3392 | -932.3 | -742.8 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 15.32 | 191.22 | -6.31 | 23.55 | 0.2666 | -978.0 | -750.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.35 | 190.60 | -6.94 | 23.95 | 0.2867 | -970.0 | -739.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 20.44 | 188.94 | -8.60 | 23.07 | 0.3592 | 946.0 | 831.6 | |
| 1.20 | 5.21 | 0.64 | 2.80 | 22.14 | 188.71 | -8.83 | 21.73 | 0.3858 | 963.4 | 778.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 22.26 | 188.50 | -9.03 | 22.04 | 0.3889 | 797.0 | 667.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 15.22 | 188.54 | -9.00 | 31.98 | 0.2863 | -790.0 | -615.3 | |
| 0.00 | 2.91 | 0.00 | 1.56 | 22.17 | 188.09 | -9.45 | 23.04 | 0.3901 | 1128.0 | 826.8 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 23.09 | 188.03 | -9.51 | 22.21 | 0.4039 | 801.0 | 601.1 | |
| 1.11 | 54.37 | 0.59 | 29.09 | 20.97 | 188.01 | -9.53 | 24.59 | 0.3731 | 975.0 | 651.1 | |
| 10.43 | -28.00 | 5.58 | -28.00 | 21.31 | 187.83 | -9.71 | 24.59 | 0.3794 | 1247.9 | 999999 | |
| 7.01 | -28.00 | 3.76 | -28.00 | 21.50 | 187.52 | -10.02 | 25.03 | 0.3841 | 1083.1 | 999999 | |
| 4.36 | 22.65 | 2.34 | 12.19 | 21.85 | 187.37 | -10.17 | 24.95 | 0.3902 | 957.5 | 694.7 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 23.82 | 187.19 | -10.35 | 23.16 | 0.4197 | 653.0 | 513.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.68 | 187.42 | -10.12 | 27.58 | 0.3588 | 855.0 | 609.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 22.38 | 187.20 | -10.34 | 24.69 | 0.3990 | 830.0 | 708.9 | |
| 7.27 | -31.00 | 3.91 | -31.00 | 22.00 | 187.13 | -10.41 | 25.27 | 0.3941 | 927.2 | 999999 | |
| 1.11 | -31.00 | 0.60 | -31.00 | 21.66 | 187.06 | -10.48 | 25.83 | 0.3896 | 978.5 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.87 | 24.07 | 186.77 | -10.77 | 23.71 | 0.4260 | 853.0 | 760.5 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 21.75 | 186.57 | -10.97 | 26.75 | 0.3944 | 832.0 | 600.4 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 22.10 | 186.47 | -11.06 | 26.52 | 0.4000 | 852.0 | 564.5 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 25.98 | 186.09 | -11.44 | 23.06 | 0.4572 | 811.0 | 671.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 22.32 | 186.23 | -11.31 | 26.75 | 0.4049 | 860.0 | 668.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 25.23 | 185.43 | -12.10 | 24.99 | 0.4509 | 699.0 | 467.8 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 24.33 | 185.49 | -12.05 | 25.85 | 0.4380 | 887.0 | 784.4 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 24.84 | 184.70 | -12.83 | 26.70 | 0.4505 | 613.0 | 588.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 23.52 | 184.74 | -12.80 | 28.15 | 0.4324 | 805.0 | 654.8 | |
| 0.00 | 3.42 | 0.00 | 1.86 | 22.60 | 184.80 | -12.74 | 29.18 | 0.4194 | 857.0 | 692.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 23.07 | 184.42 | -13.12 | 29.28 | 0.4287 | 800.0 | 650.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 22.88 | 184.14 | -13.39 | 30.03 | 0.4283 | 801.0 | 634.3 | |
| 0.00 | 3.42 | 0.00 | 1.87 | 22.59 | 184.04 | -13.50 | 30.58 | 0.4254 | 826.0 | 686.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 25.48 | 183.49 | -14.05 | 28.06 | 0.4678 | 612.0 | 446.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
