SDO HMI 2011-11-28 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 121.12 | 15.19 | 108.03 | 14.47 | 252.38 | 55.39 | 286.62 | 0.8338 | -770.5 | -284.8 | |
|
previous
or next observation for the same group /

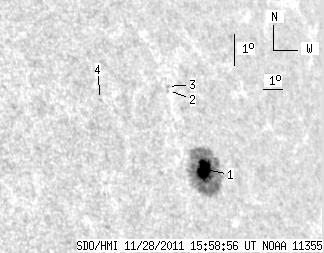

back to the solar disc SDO HMI 2011-11-28 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 118.30 | 15.19 | 105.64 | 14.42 | 252.44 | 55.45 | 286.55 | 0.8343 | -881.0 | -290.8 | |
| 0.00 | 0.68 | 0.00 | 0.60 | 16.85 | 251.48 | 54.49 | 289.63 | 0.8293 | -577.0 | -451.8 | |
| 0.00 | 0.77 | 0.00 | 0.68 | 16.98 | 251.48 | 54.49 | 289.77 | 0.8295 | -465.0 | -385.4 | |
| 0.00 | 1.37 | 0.00 | 1.11 | 16.63 | 247.90 | 50.92 | 290.16 | 0.7946 | 409.0 | 360.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
