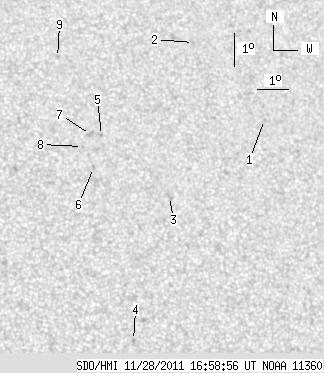

SDO HMI 2011-11-28 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.01 | 0.00 | 7.59 | 17.20 | 214.06 | 17.63 | 313.53 | 0.4026 | 434.8 | 278.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.38 | 18.21 | 218.73 | 22.30 | 309.16 | 0.4667 | 924.0 | 714.6 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 20.63 | 216.67 | 20.24 | 315.82 | 0.4665 | 704.0 | 482.5 | |
| 0.00 | 2.65 | 0.00 | 1.43 | 15.87 | 215.32 | 18.88 | 309.18 | 0.4033 | -747.0 | -612.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 11.52 | 213.82 | 17.38 | 301.50 | 0.3448 | -838.0 | -683.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 17.75 | 213.30 | 16.86 | 315.91 | 0.3987 | 738.0 | 539.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.77 | 212.95 | 16.51 | 314.63 | 0.3840 | 920.0 | 776.1 | |
| 0.00 | 3.68 | 0.00 | 1.98 | 17.79 | 212.94 | 16.51 | 316.56 | 0.3952 | 714.0 | 666.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.42 | 212.65 | 16.21 | 316.37 | 0.3878 | 732.0 | 606.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 20.18 | 212.11 | 15.67 | 322.08 | 0.4143 | 766.0 | 548.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
