SDO HMI 2011-11-28 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.52 | 0.00 | 4.83 | 14.98 | 159.14 | -37.29 | 67.52 | 0.6369 | -731.0 | -584.7 | |
|
previous
or next observation for the same group /

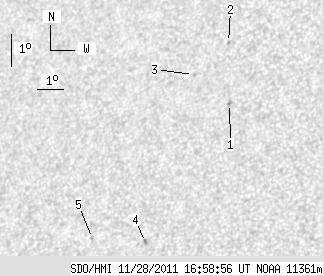

back to the solar disc SDO HMI 2011-11-28 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.08 | 16.30 | 160.82 | -35.61 | 64.75 | 0.6203 | -856.0 | -621.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 18.17 | 160.36 | -36.07 | 62.18 | 0.6349 | -747.0 | -567.7 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 17.17 | 159.24 | -37.19 | 64.24 | 0.6436 | -732.0 | -563.6 | |
| 0.00 | 2.05 | 0.00 | 1.31 | 12.04 | 158.42 | -38.01 | 72.33 | 0.6345 | -747.0 | -623.8 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 12.13 | 156.33 | -40.10 | 72.88 | 0.6613 | -573.0 | -508.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
