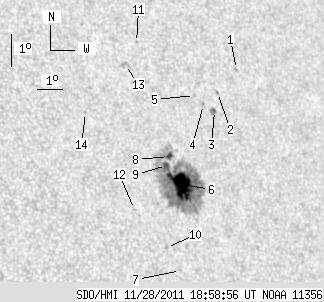

SDO HMI 2011-11-28 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.51 | 205.55 | 26.28 | 133.34 | 15.71 | 233.42 | 38.09 | 293.19 | 0.6484 | -916.4 | -360.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.94 | 18.94 | 236.57 | 41.24 | 296.37 | 0.6983 | 625.0 | 449.3 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 18.23 | 235.58 | 40.25 | 295.84 | 0.6842 | -501.0 | -373.9 | |
| 1.54 | 3.68 | 1.03 | 2.47 | 17.68 | 235.31 | 39.98 | 295.19 | 0.6788 | -551.9 | -580.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 17.87 | 234.91 | 39.58 | 295.64 | 0.6750 | -754.0 | -639.1 | |
| 0.00 | 1.37 | 0.00 | 0.91 | 18.15 | 234.62 | 39.29 | 296.17 | 0.6728 | -582.0 | -483.2 | |
| 32.56 | 188.37 | 21.11 | 122.04 | 15.43 | 233.45 | 38.12 | 292.76 | 0.6476 | -1149.6 | -354.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 12.82 | 232.89 | 37.56 | 289.05 | 0.6312 | -697.0 | -588.0 | |
| 2.39 | -6.00 | 1.55 | -6.00 | 16.29 | 233.17 | 37.84 | 294.16 | 0.6477 | -843.4 | 999999 | |
| 4.02 | -6.00 | 2.59 | -6.00 | 16.02 | 232.99 | 37.66 | 293.84 | 0.6444 | -902.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 13.52 | 232.48 | 37.15 | 290.29 | 0.6284 | -635.0 | -509.2 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 19.83 | 232.76 | 37.43 | 299.46 | 0.6591 | -504.0 | -424.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 14.69 | 231.48 | 36.15 | 292.53 | 0.6201 | -649.0 | -492.1 | |
| 0.00 | 3.59 | 0.00 | 2.33 | 19.15 | 232.15 | 36.82 | 298.83 | 0.6485 | -478.0 | -485.7 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 17.68 | 230.25 | 34.92 | 297.74 | 0.6185 | -589.0 | -491.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
