SDO HMI 2011-11-28 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.49 | 395.47 | 38.63 | 207.47 | 19.87 | 192.10 | -3.23 | 8.54 | 0.3288 | -200.3 | -189.3 | |
|
previous
or next observation for the same group /

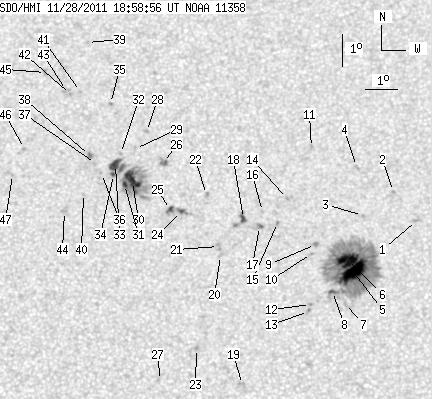

back to the solar disc SDO HMI 2011-11-28 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.65 | 0.00 | 1.39 | 20.34 | 196.67 | 1.34 | 356.18 | 0.3296 | -883.0 | -651.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.25 | 195.95 | 0.62 | 358.32 | 0.3440 | -907.0 | -710.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 20.50 | 194.96 | -0.37 | 1.04 | 0.3315 | -860.0 | -724.9 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 22.04 | 194.77 | -0.56 | 1.46 | 0.3569 | -652.0 | -529.8 | |
| 22.22 | 230.93 | 11.54 | 120.05 | 18.75 | 194.69 | -0.64 | 2.02 | 0.3026 | -1573.2 | -487.4 | |
| 15.21 | -5.00 | 7.92 | -5.00 | 19.09 | 194.50 | -0.83 | 2.56 | 0.3084 | -1255.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 17.76 | 194.44 | -0.89 | 2.97 | 0.2862 | -411.0 | -330.8 | |
| 2.22 | -5.00 | 1.15 | -5.00 | 18.13 | 194.04 | -1.29 | 4.22 | 0.2928 | -974.0 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 19.59 | 193.49 | -1.84 | 5.48 | 0.3178 | -856.0 | -730.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.31 | 193.37 | -1.96 | 5.94 | 0.3134 | -731.0 | -581.9 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 22.64 | 193.32 | -2.00 | 5.05 | 0.3681 | -741.0 | -572.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.73 | 193.36 | -1.97 | 6.59 | 0.2872 | -1005.0 | -775.5 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 17.52 | 193.30 | -2.03 | 6.88 | 0.2837 | -784.0 | -768.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.03 | 192.59 | -2.74 | 7.51 | 0.3432 | -754.0 | -625.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.28 | 192.28 | -3.04 | 8.68 | 0.3316 | -846.0 | -687.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.62 | 191.80 | -3.53 | 9.84 | 0.3385 | -706.0 | -465.8 | |
| 0.00 | 3.50 | 0.00 | 1.84 | 20.15 | 191.72 | -3.61 | 10.33 | 0.3311 | -1121.0 | -861.8 | |
| 2.82 | 8.46 | 1.48 | 4.45 | 20.40 | 191.21 | -4.12 | 11.59 | 0.3367 | -882.2 | -663.4 | |
| 0.00 | 2.48 | 0.00 | 1.27 | 15.28 | 191.29 | -4.03 | 15.62 | 0.2532 | -895.0 | -747.8 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 19.25 | 190.52 | -4.81 | 14.37 | 0.3207 | -733.0 | -562.0 | |
| 0.00 | 3.33 | 0.00 | 1.75 | 19.53 | 190.44 | -4.89 | 14.34 | 0.3255 | -565.0 | -570.9 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 21.15 | 190.01 | -5.32 | 14.24 | 0.3531 | -783.0 | -625.3 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 16.37 | 189.85 | -5.48 | 19.32 | 0.2782 | -1038.0 | -788.7 | |
| 1.45 | 10.77 | 0.77 | 5.69 | 20.62 | 189.24 | -6.09 | 16.66 | 0.3481 | 853.3 | 720.7 | |
| 2.48 | -24.00 | 1.31 | -24.00 | 20.68 | 188.88 | -6.45 | 17.50 | 0.3508 | 921.0 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.51 | 22.16 | 188.59 | -6.74 | 16.91 | 0.3751 | 1014.0 | 908.9 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 15.39 | 188.77 | -6.56 | 24.23 | 0.2697 | -424.0 | -406.0 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 23.14 | 187.99 | -7.34 | 17.46 | 0.3930 | 712.0 | 561.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 22.60 | 187.67 | -7.66 | 18.66 | 0.3864 | 648.0 | 567.5 | |
| 15.38 | 61.62 | 8.20 | 32.82 | 21.56 | 187.63 | -7.70 | 19.73 | 0.3708 | 1194.4 | 579.6 | |
| 2.39 | -30.00 | 1.28 | -30.00 | 21.46 | 187.38 | -7.95 | 20.41 | 0.3708 | 1093.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 22.44 | 187.19 | -8.14 | 19.87 | 0.3866 | 696.0 | 532.0 | |
| 7.61 | 18.46 | 4.07 | 9.88 | 22.09 | 187.05 | -8.28 | 20.53 | 0.3821 | 909.6 | 844.7 | |
| 1.71 | -33.00 | 0.91 | -33.00 | 21.78 | 187.01 | -8.32 | 20.95 | 0.3776 | 981.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 24.04 | 186.77 | -8.56 | 19.33 | 0.4127 | 863.0 | 738.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.81 | 186.62 | -8.71 | 21.80 | 0.3804 | 703.0 | 656.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 22.12 | 186.40 | -8.93 | 21.94 | 0.3863 | 929.0 | 725.2 | |
| 0.00 | 3.08 | 0.00 | 1.65 | 22.37 | 186.19 | -9.14 | 22.14 | 0.3913 | 867.0 | 775.1 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 26.01 | 185.86 | -9.47 | 19.43 | 0.4465 | 695.0 | 555.4 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 21.17 | 186.08 | -9.25 | 23.71 | 0.3744 | 669.0 | 575.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 24.42 | 185.75 | -9.58 | 21.03 | 0.4239 | 919.0 | 719.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 24.32 | 185.43 | -9.90 | 21.76 | 0.4243 | 911.0 | 766.8 | |
| 0.00 | 2.48 | 0.00 | 1.36 | 24.45 | 185.29 | -10.04 | 21.91 | 0.4270 | 602.0 | 606.0 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 20.61 | 185.50 | -9.82 | 25.69 | 0.3701 | 851.0 | 700.4 | |
| 0.00 | 2.39 | 0.00 | 1.32 | 25.03 | 184.55 | -10.78 | 22.78 | 0.4398 | 840.0 | 723.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.59 | 184.06 | -11.27 | 26.32 | 0.4085 | 742.0 | 621.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 21.76 | 183.74 | -11.59 | 27.98 | 0.3993 | 751.0 | 631.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
