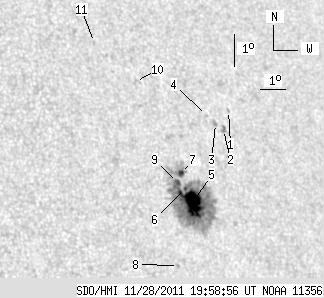

SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.67 | 201.54 | 23.94 | 131.77 | 15.70 | 233.41 | 38.63 | 292.94 | 0.6551 | -974.7 | -357.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.76 | 18.23 | 235.60 | 40.82 | 295.58 | 0.6907 | -614.0 | -504.8 | |
| 0.00 | 3.16 | 0.00 | 2.14 | 17.64 | 235.23 | 40.45 | 294.93 | 0.6842 | -665.0 | -541.2 | |
| 0.00 | 2.31 | 0.00 | 1.56 | 17.83 | 234.95 | 40.18 | 295.32 | 0.6818 | -740.0 | -566.9 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 18.08 | 234.65 | 39.88 | 295.80 | 0.6793 | -605.0 | -514.5 | |
| 29.57 | 171.54 | 19.31 | 112.03 | 15.42 | 233.44 | 38.66 | 292.52 | 0.6543 | -1138.4 | -342.2 | |
| 1.03 | -5.00 | 0.67 | -5.00 | 15.85 | 233.22 | 38.44 | 293.25 | 0.6533 | -668.9 | 999999 | |
| 3.16 | 18.12 | 2.07 | 11.83 | 16.31 | 233.21 | 38.43 | 293.93 | 0.6549 | -779.7 | -372.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 13.52 | 232.50 | 37.73 | 290.05 | 0.6356 | -732.0 | -502.4 | |
| 2.91 | -5.00 | 1.89 | -5.00 | 16.04 | 232.98 | 38.21 | 293.63 | 0.6512 | -833.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.12 | 19.17 | 232.11 | 37.33 | 298.59 | 0.6547 | -623.0 | -525.5 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 20.40 | 230.83 | 36.05 | 301.07 | 0.6463 | -558.0 | -361.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
