SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.36 | 123.69 | 12.62 | 72.98 | 17.93 | 223.72 | 28.95 | 302.19 | 0.5464 | -680.9 | -441.0 | |
|
previous
or next observation for the same group /

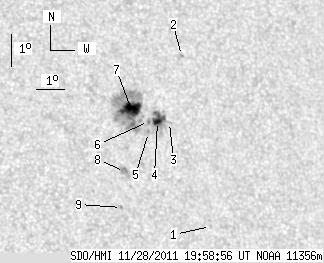

back to the solar disc SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.61 | 14.53 | 225.75 | 30.98 | 295.07 | 0.5522 | 533.0 | 459.2 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 19.80 | 225.69 | 30.91 | 303.62 | 0.5827 | 802.0 | 712.5 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 17.73 | 224.83 | 30.06 | 301.01 | 0.5588 | -110.0 | -105.1 | |
| 3.50 | 20.00 | 2.08 | 11.88 | 17.77 | 224.41 | 29.63 | 301.39 | 0.5538 | -1021.0 | -612.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 17.43 | 224.03 | 29.25 | 301.13 | 0.5468 | -864.0 | -730.6 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 17.77 | 224.09 | 29.31 | 301.64 | 0.5498 | -996.0 | -762.3 | |
| 17.86 | 89.66 | 10.54 | 52.86 | 18.15 | 223.55 | 28.78 | 302.68 | 0.5457 | -1071.6 | -465.3 | |
| 0.00 | 6.15 | 0.00 | 3.58 | 16.24 | 222.98 | 28.21 | 299.95 | 0.5259 | -170.0 | -161.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 15.14 | 222.71 | 27.94 | 298.24 | 0.5154 | 864.0 | 767.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
