SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.95 | 148.99 | 33.53 | 84.72 | 18.69 | 170.74 | -24.04 | 51.89 | 0.4919 | 83.1 | -31.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

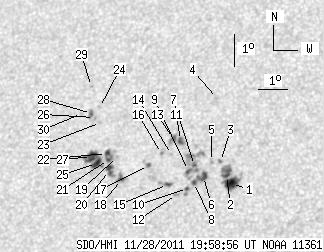

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.39 | 27.95 | 6.90 | 15.57 | 18.11 | 173.16 | -21.62 | 50.19 | 0.4578 | -1074.0 | -776.9 | |
| 1.97 | -1.00 | 1.10 | -1.00 | 18.36 | 172.96 | -21.82 | 50.00 | 0.4625 | -806.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 18.79 | 172.69 | -22.08 | 49.57 | 0.4695 | -913.0 | -718.2 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 20.76 | 172.30 | -22.47 | 46.79 | 0.4925 | -730.0 | -556.9 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 18.79 | 172.39 | -22.39 | 49.93 | 0.4731 | -860.0 | -612.9 | |
| 5.04 | 10.34 | 2.83 | 5.80 | 18.32 | 172.19 | -22.59 | 50.98 | 0.4713 | -1015.7 | -951.3 | |
| 1.28 | 24.27 | 0.72 | 13.69 | 18.66 | 171.83 | -22.94 | 50.80 | 0.4785 | -697.7 | -356.3 | |
| 1.79 | -6.00 | 1.01 | -6.00 | 18.13 | 171.87 | -22.90 | 51.67 | 0.4734 | -924.7 | 999999 | |
| 1.71 | -7.00 | 0.96 | -7.00 | 18.50 | 171.65 | -23.12 | 51.28 | 0.4793 | -816.4 | 999999 | |
| 0.94 | 3.68 | 0.53 | 2.06 | 17.95 | 171.70 | -23.08 | 52.20 | 0.4740 | -802.5 | -691.0 | |
| 3.33 | 10.09 | 1.89 | 5.74 | 19.43 | 171.24 | -23.53 | 50.17 | 0.4924 | 1033.5 | 713.9 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 17.76 | 171.35 | -23.43 | 52.91 | 0.4766 | -605.0 | -404.6 | |
| 2.39 | -11.00 | 1.36 | -11.00 | 19.49 | 170.99 | -23.78 | 50.34 | 0.4958 | 780.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 19.00 | 171.00 | -23.78 | 51.17 | 0.4914 | 746.0 | 534.6 | |
| 1.79 | 5.56 | 1.01 | 3.14 | 18.07 | 171.00 | -23.77 | 52.76 | 0.4834 | -711.9 | -477.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 19.02 | 170.65 | -24.12 | 51.50 | 0.4958 | 817.0 | 702.2 | |
| 1.37 | 1.97 | 0.78 | 1.12 | 18.65 | 170.27 | -24.51 | 52.54 | 0.4972 | -778.0 | -644.4 | |
| 2.39 | 5.81 | 1.37 | 3.33 | 18.21 | 169.41 | -25.37 | 54.16 | 0.5041 | 1031.5 | 767.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.92 | 169.15 | -25.62 | 53.22 | 0.5129 | 834.0 | 629.6 | |
| 4.53 | 8.63 | 2.61 | 4.97 | 18.48 | 168.95 | -25.83 | 54.15 | 0.5119 | 1030.5 | 878.7 | |
| 1.71 | 9.57 | 0.99 | 5.53 | 18.82 | 168.86 | -25.92 | 53.67 | 0.5157 | 1006.0 | 722.8 | |
| 2.39 | -21.00 | 1.38 | -21.00 | 19.01 | 168.76 | -26.02 | 53.46 | 0.5184 | 819.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 19.97 | 168.38 | -26.40 | 52.26 | 0.5305 | 806.0 | 684.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 20.44 | 168.26 | -26.52 | 51.64 | 0.5357 | 565.0 | 477.2 | |
| 5.04 | 20.09 | 2.92 | 11.65 | 18.69 | 168.46 | -26.32 | 54.26 | 0.5195 | 929.4 | 709.0 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 20.13 | 168.14 | -26.64 | 52.25 | 0.5346 | 932.0 | 675.9 | |
| 7.35 | -25.00 | 4.27 | -25.00 | 18.91 | 168.25 | -26.53 | 54.10 | 0.5237 | 775.8 | 999999 | |
| 1.54 | 4.02 | 0.90 | 2.36 | 20.25 | 168.01 | -26.77 | 52.17 | 0.5371 | 902.2 | 727.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 21.10 | 167.85 | -26.93 | 51.01 | 0.5458 | 640.0 | 516.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 20.25 | 167.66 | -27.12 | 52.51 | 0.5412 | 611.0 | 477.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
