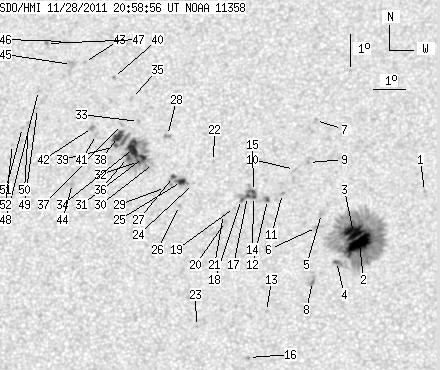

SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.77 | 420.27 | 40.86 | 220.58 | 20.03 | 191.81 | -2.42 | 6.05 | 0.3302 | -131.7 | -143.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.40 | 196.76 | 2.54 | 352.80 | 0.3325 | -839.0 | -670.9 | |
| 21.03 | 227.70 | 10.92 | 118.42 | 18.78 | 194.70 | 0.48 | 358.49 | 0.3031 | -1565.3 | -469.3 | |
| 14.79 | -2.00 | 7.70 | -2.00 | 19.12 | 194.52 | 0.29 | 359.09 | 0.3087 | -1250.4 | 999999 | |
| 1.71 | 8.38 | 0.89 | 4.34 | 18.22 | 193.99 | -0.24 | 0.77 | 0.2937 | -996.5 | -835.2 | |
| 0.00 | 3.68 | 0.00 | 1.92 | 19.71 | 193.51 | -0.71 | 2.10 | 0.3187 | -897.0 | -593.6 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 19.27 | 193.36 | -0.86 | 2.63 | 0.3116 | -899.0 | -655.0 | |
| 0.00 | 2.31 | 0.00 | 1.23 | 22.64 | 193.31 | -0.92 | 2.31 | 0.3670 | -678.0 | -583.0 | |
| 0.00 | 4.19 | 0.00 | 2.16 | 17.60 | 193.24 | -0.98 | 3.31 | 0.2837 | -1072.0 | -826.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.31 | 193.09 | -1.13 | 3.06 | 0.3454 | -934.0 | -730.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 21.09 | 192.65 | -1.57 | 4.30 | 0.3423 | -723.0 | -607.2 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 20.33 | 192.28 | -1.94 | 5.54 | 0.3304 | -921.0 | -670.0 | |
| 1.88 | 4.10 | 0.99 | 2.15 | 20.15 | 191.81 | -2.41 | 6.95 | 0.3282 | -955.1 | -752.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.68 | 191.83 | -2.39 | 8.54 | 0.2707 | -860.0 | -661.1 | |
| 0.85 | 14.53 | 0.45 | 7.63 | 20.24 | 191.37 | -2.85 | 8.16 | 0.3307 | -1106.4 | -600.7 | |
| 1.45 | -14.00 | 0.76 | -14.00 | 20.40 | 191.37 | -2.86 | 8.10 | 0.3332 | -822.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 15.27 | 191.29 | -2.93 | 11.48 | 0.2489 | -928.0 | -806.5 | |
| 2.31 | -14.00 | 1.21 | -14.00 | 20.24 | 191.18 | -3.04 | 8.69 | 0.3311 | -930.3 | 999999 | |
| 0.94 | -14.00 | 0.49 | -14.00 | 20.15 | 190.99 | -3.23 | 9.27 | 0.3301 | -809.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.90 | 190.78 | -3.45 | 10.01 | 0.3266 | -704.0 | -512.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.46 | 190.50 | -3.72 | 11.06 | 0.3203 | -874.0 | -728.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.68 | 190.44 | -3.79 | 11.12 | 0.3241 | -711.0 | -499.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 21.34 | 190.08 | -4.15 | 11.08 | 0.3520 | -765.0 | -633.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.22 | 189.68 | -4.55 | 16.39 | 0.2710 | -747.0 | -584.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.64 | 189.46 | -4.76 | 13.15 | 0.3430 | 411.0 | 359.0 | |
| 4.10 | 11.88 | 2.16 | 6.27 | 20.71 | 189.08 | -5.14 | 14.11 | 0.3455 | 1033.1 | 835.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.96 | 189.04 | -5.18 | 14.81 | 0.3337 | 862.0 | 671.3 | |
| 1.54 | -25.00 | 0.81 | -25.00 | 20.86 | 188.82 | -5.40 | 14.67 | 0.3491 | 891.5 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.18 | 22.16 | 188.58 | -5.64 | 14.30 | 0.3704 | 859.0 | 872.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.52 | 188.58 | -5.65 | 15.58 | 0.3446 | 857.0 | 683.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 21.27 | 188.17 | -6.06 | 16.00 | 0.3583 | 169.0 | 131.0 | |
| 2.56 | 89.24 | 1.36 | 47.49 | 21.46 | 187.84 | -6.38 | 16.65 | 0.3627 | 953.1 | 610.0 | |
| 1.88 | -31.00 | 1.00 | -31.00 | 21.33 | 187.69 | -6.54 | 17.14 | 0.3615 | 1109.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 22.60 | 187.63 | -6.60 | 16.22 | 0.3814 | 740.0 | 662.3 | |
| 11.62 | -31.00 | 6.19 | -31.00 | 21.74 | 187.51 | -6.72 | 17.21 | 0.3687 | 1173.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 23.33 | 187.36 | -6.86 | 16.24 | 0.3938 | 810.0 | 602.8 | |
| 2.82 | -31.00 | 1.50 | -31.00 | 21.46 | 187.33 | -6.90 | 17.90 | 0.3652 | 1118.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 22.50 | 187.08 | -7.14 | 17.55 | 0.3824 | 656.0 | 518.7 | |
| 7.44 | -31.00 | 3.97 | -31.00 | 22.12 | 187.01 | -7.22 | 18.06 | 0.3770 | 913.9 | 999999 | |
| 0.85 | -31.00 | 0.46 | -31.00 | 21.80 | 186.93 | -7.30 | 18.54 | 0.3726 | 952.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 24.00 | 186.74 | -7.48 | 17.08 | 0.4069 | 787.0 | 676.0 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 22.18 | 186.29 | -7.93 | 19.64 | 0.3817 | 875.0 | 714.0 | |
| 0.00 | 3.42 | 0.00 | 1.83 | 22.40 | 186.15 | -8.07 | 19.75 | 0.3858 | 954.0 | 783.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 24.48 | 185.76 | -8.46 | 18.73 | 0.4189 | 896.0 | 733.8 | |
| 0.00 | 3.59 | 0.00 | 1.91 | 20.64 | 185.61 | -8.61 | 22.84 | 0.3625 | 705.0 | 593.5 | |
| 0.00 | 4.02 | 0.00 | 2.19 | 24.41 | 185.34 | -8.89 | 19.64 | 0.4202 | 727.0 | 656.2 | |
| 0.00 | 2.65 | 0.00 | 1.45 | 25.16 | 185.09 | -9.14 | 19.50 | 0.4324 | 736.0 | 656.9 | |
| 0.00 | 2.39 | 0.00 | 1.31 | 25.09 | 184.46 | -9.76 | 20.77 | 0.4349 | 874.0 | 680.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.58 | 184.32 | -9.91 | 22.50 | 0.4137 | 794.0 | 661.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.00 | 184.33 | -9.90 | 23.07 | 0.4053 | 788.0 | 600.6 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 22.52 | 184.07 | -10.15 | 24.13 | 0.4001 | 834.0 | 652.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 22.40 | 183.89 | -10.34 | 24.65 | 0.3995 | 740.0 | 539.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 21.86 | 183.60 | -10.62 | 25.87 | 0.3937 | 756.0 | 646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
