SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.68 | 0.00 | 7.55 | 17.92 | 214.60 | 20.38 | 311.20 | 0.4412 | 738.5 | 586.3 | |
|
previous
or next observation for the same group /

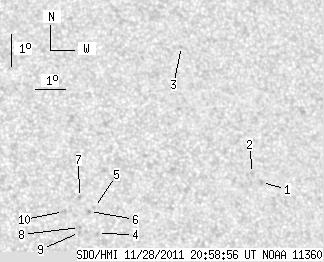

back to the solar disc SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.63 | 18.21 | 219.17 | 24.95 | 306.27 | 0.4990 | 704.0 | 596.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 18.49 | 218.91 | 24.68 | 307.02 | 0.4981 | 734.0 | 569.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 22.49 | 217.12 | 22.89 | 315.38 | 0.5138 | 604.0 | 407.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.68 | 213.48 | 19.26 | 310.26 | 0.4159 | 661.0 | 447.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 17.48 | 213.47 | 19.25 | 311.79 | 0.4235 | 666.0 | 564.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 17.36 | 213.29 | 19.07 | 311.81 | 0.4202 | 869.0 | 760.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 17.79 | 213.01 | 18.79 | 313.02 | 0.4213 | 814.0 | 649.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 16.87 | 212.92 | 18.69 | 311.43 | 0.4108 | 790.0 | 646.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 16.71 | 212.90 | 18.68 | 311.16 | 0.4091 | 777.0 | 457.9 | |
| 0.00 | 2.74 | 0.00 | 1.48 | 17.36 | 212.44 | 18.22 | 313.07 | 0.4103 | 766.0 | 705.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
