SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.23 | 0.00 | 3.85 | 15.13 | 159.90 | -34.32 | 65.84 | 0.6001 | -645.2 | -559.7 | |
|
previous
or next observation for the same group /

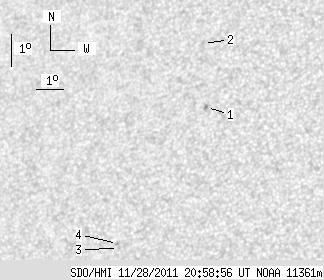

back to the solar disc SDO HMI 2011-11-28 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.31 | 0.00 | 1.41 | 16.19 | 160.99 | -33.23 | 63.58 | 0.5900 | -772.0 | -628.7 | |
| 0.00 | 1.62 | 0.00 | 1.01 | 18.15 | 160.47 | -33.75 | 60.84 | 0.6068 | -277.0 | -373.9 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 11.87 | 158.47 | -35.75 | 71.73 | 0.6044 | -718.0 | -568.9 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 12.02 | 158.41 | -35.81 | 71.51 | 0.6057 | -814.0 | -653.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
