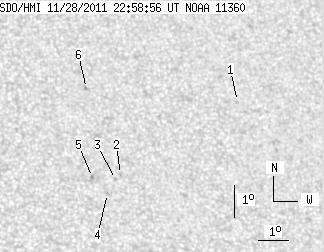

SDO HMI 2011-11-28 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.07 | 0.00 | 3.34 | 17.97 | 213.16 | 20.04 | 311.58 | 0.4380 | 778.0 | 626.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.15 | 19.72 | 217.72 | 24.60 | 309.17 | 0.5076 | 739.0 | 658.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 17.49 | 213.45 | 20.34 | 310.35 | 0.4368 | 640.0 | 492.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.34 | 213.27 | 20.15 | 310.31 | 0.4331 | 796.0 | 609.9 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 16.91 | 212.96 | 19.84 | 309.93 | 0.4253 | 817.0 | 626.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.41 | 212.52 | 19.40 | 311.46 | 0.4248 | 931.0 | 717.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 20.17 | 212.66 | 19.54 | 316.08 | 0.4545 | 745.0 | 631.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
