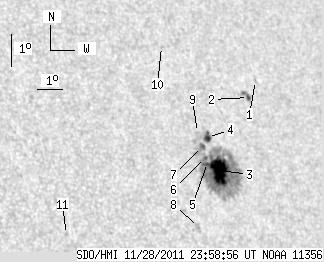

SDO HMI 2011-11-28 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.70 | 180.40 | 25.46 | 121.69 | 15.62 | 233.35 | 40.78 | 291.98 | 0.6806 | -863.5 | -327.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-28 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.09 | 18.15 | 235.69 | 43.12 | 294.56 | 0.7165 | -584.0 | -434.6 | |
| 1.88 | 5.22 | 1.32 | 3.65 | 17.63 | 235.23 | 42.67 | 294.04 | 0.7096 | -557.2 | -555.5 | |
| 27.19 | 154.66 | 18.33 | 104.31 | 15.41 | 233.44 | 40.87 | 291.65 | 0.6810 | -1034.9 | -312.3 | |
| 4.36 | 11.54 | 2.94 | 7.77 | 16.42 | 233.20 | 40.63 | 293.18 | 0.6818 | -703.2 | -501.3 | |
| 0.68 | -3.00 | 0.46 | -3.00 | 15.66 | 233.01 | 40.44 | 292.17 | 0.6768 | -1044.8 | 999999 | |
| 1.28 | -3.00 | 0.86 | -3.00 | 15.81 | 232.97 | 40.40 | 292.40 | 0.6768 | -946.7 | 999999 | |
| 2.31 | -3.00 | 1.55 | -3.00 | 16.15 | 232.93 | 40.36 | 292.90 | 0.6776 | -802.0 | 999999 | |
| 0.00 | 3.42 | 0.00 | 2.25 | 13.69 | 232.21 | 39.65 | 289.61 | 0.6604 | -797.0 | -504.1 | |
| 0.00 | 1.37 | 0.00 | 0.92 | 16.58 | 232.83 | 40.27 | 293.55 | 0.6781 | -450.0 | -339.1 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 19.25 | 232.10 | 39.53 | 297.62 | 0.6805 | -600.0 | -534.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 13.54 | 227.14 | 34.57 | 291.49 | 0.5951 | 619.0 | 467.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
