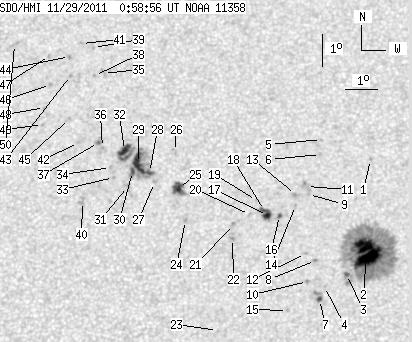

SDO HMI 2011-11-29 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.00 | 392.11 | 43.04 | 205.68 | 20.01 | 192.07 | 0.05 | 359.00 | 0.3285 | -126.0 | -179.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.68 | 21.91 | 194.81 | 2.79 | 352.73 | 0.3582 | -685.0 | -496.7 | |
| 39.42 | 234.27 | 20.52 | 122.01 | 19.00 | 194.63 | 2.61 | 351.98 | 0.3102 | -1407.9 | -466.0 | |
| 0.77 | -2.00 | 0.40 | -2.00 | 18.32 | 193.99 | 1.98 | 353.65 | 0.2976 | -1223.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.95 | 193.31 | 1.29 | 355.75 | 0.2903 | -883.0 | -648.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 22.55 | 193.25 | 1.23 | 356.88 | 0.3663 | -709.0 | -550.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 22.07 | 193.21 | 1.20 | 356.89 | 0.3585 | -734.0 | -639.0 | |
| 1.62 | 5.73 | 0.84 | 2.96 | 17.55 | 193.15 | 1.13 | 356.18 | 0.2834 | -969.1 | -808.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.75 | 193.03 | 1.01 | 356.82 | 0.3035 | -962.0 | -718.0 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 20.81 | 192.82 | 0.81 | 357.76 | 0.3375 | -801.0 | -596.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 18.10 | 192.78 | 0.76 | 357.51 | 0.2924 | 820.0 | 595.1 | |
| 0.00 | 4.96 | 0.00 | 2.61 | 21.06 | 192.76 | 0.74 | 357.96 | 0.3416 | -674.0 | -644.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.97 | 192.72 | 0.70 | 357.83 | 0.3069 | -616.0 | -458.7 | |
| 0.00 | 3.16 | 0.00 | 1.66 | 20.81 | 192.41 | 0.39 | 358.90 | 0.3373 | -836.0 | -687.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 20.47 | 192.41 | 0.39 | 358.88 | 0.3316 | -896.0 | -729.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.21 | 192.16 | 0.14 | 359.52 | 0.2771 | -759.0 | -537.6 | |
| 1.37 | 2.31 | 0.72 | 1.21 | 20.15 | 191.91 | -0.11 | 0.32 | 0.3263 | -1022.6 | -700.2 | |
| 3.33 | 8.55 | 1.75 | 4.48 | 20.15 | 191.53 | -0.49 | 1.41 | 0.3264 | -1068.8 | -771.3 | |
| 0.43 | -17.00 | 0.22 | -17.00 | 20.31 | 191.43 | -0.58 | 1.67 | 0.3291 | -816.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.62 | 191.18 | -0.84 | 2.36 | 0.3344 | -571.0 | -481.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.18 | 190.96 | -1.06 | 3.04 | 0.3273 | -655.0 | -539.5 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 19.87 | 190.46 | -1.56 | 4.56 | 0.3227 | -738.0 | -624.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.44 | 190.43 | -1.58 | 4.76 | 0.3155 | -1074.0 | -870.0 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 16.59 | 190.00 | -2.02 | 7.26 | 0.2689 | -756.0 | -742.8 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 20.00 | 188.95 | -3.07 | 8.87 | 0.3277 | 851.0 | 628.8 | |
| 9.75 | 12.06 | 5.14 | 6.36 | 21.00 | 188.71 | -3.31 | 9.04 | 0.3446 | 989.7 | 838.4 | |
| 0.00 | 2.31 | 0.00 | 1.23 | 22.17 | 188.55 | -3.47 | 8.89 | 0.3639 | 441.0 | 572.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 21.19 | 187.94 | -4.08 | 10.98 | 0.3498 | 821.0 | 656.8 | |
| 2.22 | 44.63 | 1.18 | 23.68 | 21.50 | 187.77 | -4.25 | 11.23 | 0.3554 | 885.4 | 671.9 | |
| 12.06 | -28.00 | 6.40 | -28.00 | 21.79 | 187.41 | -4.61 | 11.97 | 0.3611 | 1127.7 | 999999 | |
| 2.65 | -28.00 | 1.41 | -28.00 | 21.53 | 187.23 | -4.79 | 12.60 | 0.3578 | 982.7 | 999999 | |
| 0.00 | 4.02 | 0.00 | 2.12 | 21.06 | 187.08 | -4.93 | 13.29 | 0.3508 | 837.0 | 631.5 | |
| 8.04 | 18.21 | 4.28 | 9.70 | 22.20 | 186.95 | -5.07 | 12.86 | 0.3693 | 897.6 | 940.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 21.34 | 186.63 | -5.39 | 14.25 | 0.3570 | 1009.0 | 828.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 21.66 | 186.52 | -5.50 | 14.28 | 0.3624 | 804.0 | 628.5 | |
| 0.00 | 3.68 | 0.00 | 2.00 | 24.66 | 186.17 | -5.85 | 13.10 | 0.4106 | 556.0 | 593.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 22.29 | 186.24 | -5.78 | 14.51 | 0.3735 | 900.0 | 773.6 | |
| 0.34 | 2.57 | 0.18 | 1.37 | 22.45 | 186.10 | -5.91 | 14.71 | 0.3765 | 1025.5 | 843.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 24.59 | 185.87 | -6.14 | 13.76 | 0.4107 | 879.0 | 681.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 25.50 | 185.80 | -6.22 | 13.37 | 0.4249 | 736.0 | 551.1 | |
| 0.00 | 4.53 | 0.00 | 2.39 | 20.59 | 185.67 | -6.35 | 17.30 | 0.3494 | 891.0 | 702.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 25.63 | 185.39 | -6.62 | 14.11 | 0.4284 | 456.0 | 507.1 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 22.45 | 185.46 | -6.56 | 16.23 | 0.3793 | 565.0 | 455.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 24.59 | 185.09 | -6.93 | 15.44 | 0.4138 | 1037.0 | 763.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 25.20 | 185.02 | -7.00 | 15.15 | 0.4235 | 835.0 | 689.4 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 23.21 | 185.13 | -6.89 | 16.38 | 0.3925 | 776.0 | 644.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 24.30 | 184.45 | -7.57 | 17.00 | 0.4122 | 873.0 | 647.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 25.23 | 184.36 | -7.66 | 16.47 | 0.4268 | 736.0 | 676.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 23.56 | 184.30 | -7.72 | 17.92 | 0.4018 | 777.0 | 653.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 23.02 | 184.27 | -7.75 | 18.46 | 0.3938 | 823.0 | 621.3 | |
| 0.00 | 2.91 | 0.00 | 1.60 | 25.59 | 183.18 | -8.84 | 18.54 | 0.4377 | 567.0 | 558.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
