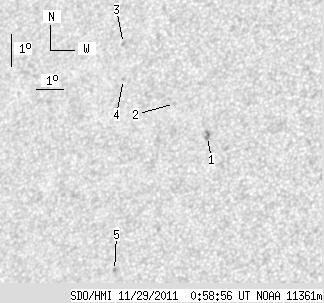

SDO HMI 2011-11-29 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.72 | 0.00 | 5.32 | 16.34 | 159.29 | -32.73 | 63.04 | 0.5849 | -669.2 | -615.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.59 | 0.00 | 2.14 | 16.07 | 161.06 | -30.96 | 62.30 | 0.5605 | -937.0 | -731.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 17.07 | 159.68 | -32.34 | 61.60 | 0.5836 | -462.0 | -395.5 | |
| 0.00 | 1.71 | 0.00 | 1.08 | 18.90 | 157.37 | -34.64 | 60.23 | 0.6218 | -646.0 | -518.7 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 17.78 | 157.63 | -34.39 | 61.75 | 0.6128 | -518.0 | -501.1 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 11.97 | 158.35 | -33.67 | 70.66 | 0.5770 | -783.0 | -692.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
