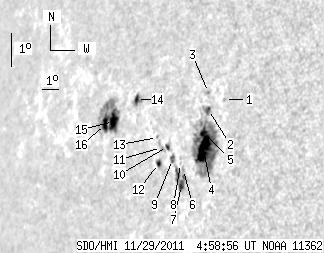

SDO HMI 2011-11-29 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.47 | 197.23 | 48.25 | 197.86 | 7.70 | 129.61 | -60.22 | 81.79 | 0.8701 | -93.8 | -146.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-29 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.63 | 8.95 | 132.60 | -57.23 | 80.12 | 0.8452 | 529.0 | 528.8 | |
| 1.37 | 108.10 | 1.29 | 101.47 | 8.63 | 131.77 | -58.05 | 80.56 | 0.8526 | 363.6 | -307.6 | |
| 0.00 | 0.94 | 0.00 | 0.89 | 9.14 | 131.64 | -58.18 | 79.98 | 0.8540 | 395.0 | 348.1 | |
| 14.80 | -2.00 | 13.91 | -2.00 | 7.44 | 131.76 | -58.07 | 81.96 | 0.8520 | -803.4 | 999999 | |
| 2.82 | -2.00 | 2.66 | -2.00 | 7.94 | 131.65 | -58.18 | 81.38 | 0.8532 | -510.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.74 | 6.82 | 130.73 | -59.09 | 82.74 | 0.8609 | -609.0 | -486.1 | |
| 4.96 | 12.66 | 4.80 | 12.29 | 6.35 | 130.71 | -59.12 | 83.30 | 0.8609 | -515.6 | -321.3 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 7.00 | 130.52 | -59.30 | 82.55 | 0.8628 | -507.0 | -443.8 | |
| 2.82 | 3.85 | 2.79 | 3.80 | 7.11 | 130.02 | -59.80 | 82.45 | 0.8672 | -281.5 | -180.8 | |
| 1.88 | 2.91 | 1.88 | 2.91 | 7.49 | 129.64 | -60.19 | 82.03 | 0.8707 | -322.5 | -315.6 | |
| 0.00 | 4.62 | 0.00 | 4.66 | 7.46 | 129.28 | -60.54 | 82.10 | 0.8737 | 399.0 | 112.6 | |
| 2.14 | 2.82 | 2.16 | 2.86 | 6.98 | 129.21 | -60.62 | 82.65 | 0.8741 | -247.3 | -173.9 | |
| 0.00 | 0.94 | 0.00 | 0.96 | 7.75 | 128.96 | -60.86 | 81.78 | 0.8765 | -117.0 | -163.5 | |
| 2.57 | 5.82 | 2.76 | 6.26 | 8.86 | 127.33 | -62.50 | 80.62 | 0.8902 | 542.1 | 510.3 | |
| 9.83 | 51.23 | 11.09 | 58.56 | 8.18 | 125.99 | -63.84 | 81.46 | 0.9002 | 721.2 | 124.4 | |
| 4.28 | -15.00 | 4.91 | -15.00 | 8.08 | 125.47 | -64.36 | 81.60 | 0.9041 | 364.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
